Honda Civic Service Manual: Rear Seat-Back Release Lever/Cable Removal and Installation

Honda Civic Service Manual / Body / Seating / Rear Seat-Back Release Lever/Cable Removal and Installation

8531X9 LEFT

8531Y0 RIGHT

Removal

1. Rear Seat-Back Release Cable - Disconnection/Reconnection

1.

Open the trunk lid.

2.

Disconnect the rear seat-back release cable (A).
2. Rear Seat-Back Release Lever/Cable

1.

Detach the cable clips (A).

2.

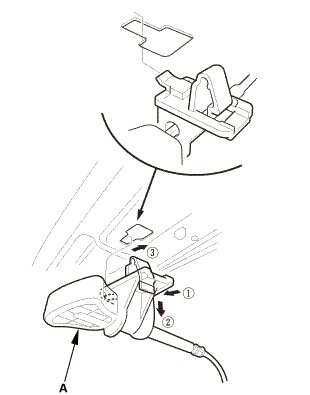

Remove the rear seat-back release lever (A).

Installation

1. Rear Seat-Back Release Lever/Cable

1.

Install the rear seat-back release lever (A).

2.

Install the cable clips (A).
2. Rear Seat-Back Release Cable - Disconnection/Reconnection

1.

Connect the seat-back release cable (A).

2.

Close the trunk lid.
