Honda Civic Service Manual: VSA Off Switch Removal and Installation (K24Z7)
| 1. |
Driver's Outer Vent (Except '12 models) |
|
|
|
1.
|

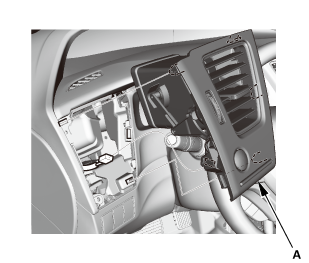

Remove the driver's outer vent (A).
|
|
| 2. |
Driver's Dashboard Lower Cover ('12 models) |
|
|
|
1.
|
Remove the driver's dashboard lower cover (A).
|
|
| 3. |
Sub Display Visor Assembly ('12 models) |
|
|
|
1.
|
Remove the subdisplay visor (A).
|
|
| 4. |
VSA Off Switch (K24Z7) |
|
|
|
1.
|
Remove the VSA OFF switch (A) from the subdisplay visor (B).
|
|
| 5. |
VSA Off Switch Bulb (K24Z7) |
|
|
|
1.
|
Remove the covers (A).
|
|
| 1. |
VSA Off Switch Bulb (K24Z7) |
|
|
|
2.
|
Install the covers (B).
|
|
| 2. |
VSA Off Switch (K24Z7) |
|
|
|
1.
|
Install the VSA OFF switch (A) to the subdisplay visor (B).
|
|
| 3. |
Sub Display Visor Assembly ('12 models) |
|
|
|
1.
|
Install the subdisplay visor (A).
|
|
| 4. |
Driver's Dashboard Lower Cover ('12 models) |
|
|
|
1.
|
Install the driver's dashboard lower cover (A).
|
|
| 5. |
Driver's Outer Vent (Except '12 models) |
|
|
|
1.
|
Install the driver's outer vent (A).
|
|
1.
Driver's Dashboard Lower Cover
1.
Remove the driver's dashboard lower cover (A).
...
Procedure
1.
HDS DLC - Connection
1.
Connect the HDS to the data link connector (DLC) (A) located
under the ...
