Honda Civic Service Manual: Steering Wheel Disassembly and Reassembly
Disassembly
![](images/books/824/64b8e3c385d10240d04cd33302e52ce3.png)
|
|
2.
|
Remove the HFL switch (B).
|
|
2. |
Steering Wheel Rear Cover |
![](images/books/824/108a929a1706247d4121760b39191315.png)
|
|
1.
|
Remove the steering wheel rear cover (A).
|
|
3. |
Steering Wheel Harness |
![](images/books/824/6590d35a23add6a233e87da218a88da4.png)
|
|
1.
|
Remove the cable reel subharness (A).
|
|
![](images/books/824/76372b623a339a9a7d28180ef7696e1b.png)
|
|
1.
|
Remove the audio remote switch (A).
|
|
5. |
Cruise Control/Speed Limiter Switch (Except Si)/Cruise Control Combination
Switch(Si) |
![](images/books/824/ff24637f0c307414b8775bf8d4dba7d9.png)
|
|
1.
|
Remove the cruise control/speed limiter switch (except Si)/cruise
control combination switch (Si) (A).
|
|
6. |
Steering Wheel Trim Assembly |
![](images/books/824/5b6ee3ffbd5dcdc457dea36e837de320.png)
|
|
1.
|
Remove the steering wheel trim (A).
|
|
Reassembly
1. |
Steering Wheel Trim Assembly |
![](images/books/824/32c01230c27437d7884bd6b08eafb7ca.png)
|
|
1.
|

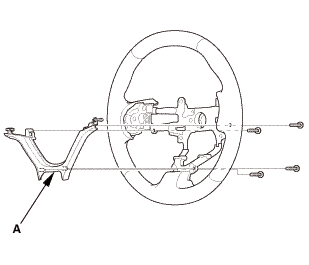

Install the steering wheel trim (A).
|
|
2. |
Cruise Control/Speed Limiter Switch (Except Si)/Cruise Control Combination
Switch(Si) |
![](images/books/824/20d06cf69ef1bf5c4b9a277db61a951f.png)
|
|
1.
|
Install the cruise control/speed limiter switch (except Si)/cruise
control combination switch (Si) (A).
|
|
![](images/books/824/f3d96fa17dac55a2b633960f7fa06235.png)
|
|
1.
|
Install the audio remote switch (A).
|
|
4. |
Steering Wheel Harness |
![](images/books/824/c12ff8e2ed017763a9d2f494948592ea.png)
|
|
1.
|
Install the cable reel subharness (A).
|
|
5. |
Steering Wheel Rear Cover |
![](images/books/824/6bf08b902aede3ddac103a1a1e4b299c.png)
|
|
1.
|

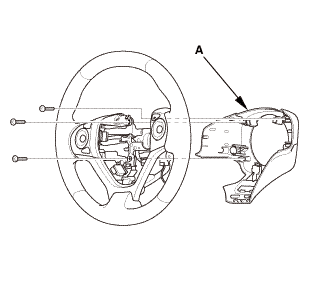

Install the steering wheel rear cover (A).
|
|
![](images/books/824/99c4c62b18146685a88a59dd5b1a9ee8.png)
|
|
1.
|
Install the HFL switch (A).
|
|
SRS components are located in this area. Review the SRS component locations,
and the precautions and procedures before doing repairs or service.
