Honda Civic Service Manual: Front Bumper Removal and Installation ('13-'14: 4-door)
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
![](images/books/497/ddb5aae30367b9c02c870e8754602e65.png)
|
|
1.
|
Remove the front grille cover (A).
|
|
![](images/books/497/9a7a3c2297dc5565ccc520aa26b2775a.png)
|
|
2.
|
If necessary, remove the front bumper upper duct (A).
|
|
![](images/books/497/dc63fe6b2e9fe798a3ea61490026269a.png)
|
|
1.
|
Remove the screws (A), the clips (B), and the bolts (C)
securing the front bumper (D).
|
|
![](images/books/497/130bc4261fc653e21bb96d60be30da79.png)
|
|
2.
|
Pull out the front bumper (A) from the side spacer (B).
Repeat this step on the opposite side.
|
|
![](images/books/497/3c4e53b1f7de64f0a9390791250ac0c7.png)
|
|
3.
|
With the help of an assistant, pull out both sides of
the front bumper (A) from the upper beam (B).
|
|
![](images/books/497/2a208d717db74c1683ecd73e96bbef52.png)
|
|
4.
|
With the help of an assistant, remove the front bumper
(A).
|
|
![](images/books/497/1367fb4f881e308c43a3df32c5f5ed36.png)
|
|

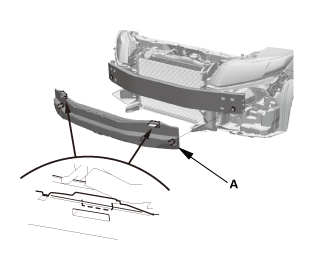

1.
|
For some models: Remove the front bumper absorber (A).
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)
![](images/books/497/1367fb4f881e308c43a3df32c5f5ed36.png)
|
|
1.
|
For some models: Install the front bumper absorber (A).
|
|
![](images/books/497/2a208d717db74c1683ecd73e96bbef52.png)
|
|
1.
|
With the help of an assistant, install the front bumper
(A).
|
|
![](images/books/497/9de833318fb86019c585f0e617f25197.png)
|
|

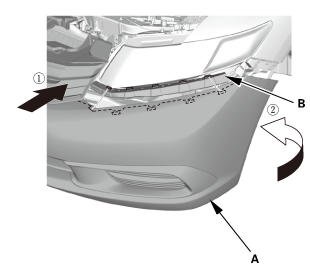

2.
|
With the help of an assistant, install both sides of
the front bumper (A) to the upper beam (B).
|
|
![](images/books/497/12281feae7e8aa868541ec868e2c2817.png)
|
|

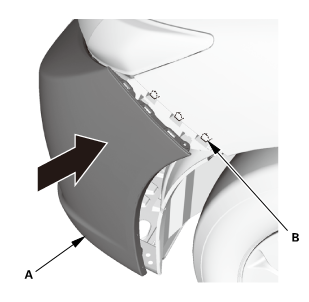

3.
|
Install the front bumper (A) to the side spacer (B).
Repeat this step on the opposite side.
|
|
![](images/books/497/e8f17839de9a5e10e01f10b9154faf1d.png)
|
|

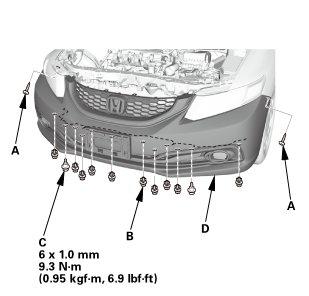

4.
|
Install the screws (A), the clips (B), and the bolts
(C) securing the front bumper (D).
|
|
![](images/books/497/9a7a3c2297dc5565ccc520aa26b2775a.png)
|
|
1.
|
Install the front bumper upper duct (A).
|
|
![](images/books/497/cb35dc45c2309967156124570ffe01ae.png)
|
|

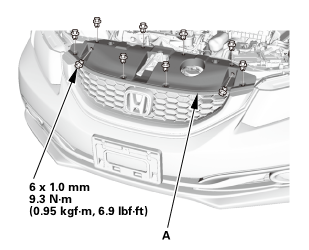

2.
|
Install the front grille cover (A).
|
|
