Honda Civic Service Manual: Rear Seat-Back Removal and Installation - Split Fold Down type (4-door)
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
Removal
1. |
Right Rear Seat-Back - Split Fold Down |
![](images/books/497/687d100d77448ea040592af3b4b47b8b.png)
|
|
1.
|
Remove the right rear seat-back (A).
|
|
2. |
Center Pivot Bracket - Split Fold Down |
![](images/books/497/59a6f7796549f0b197b4aaef1400c303.png)
|
|
1.
|
Remove the center pivot bracket (A).
|
|
2.
|
If necessary, remove the bushing (B).
|
|
3. |
Left Rear Seat-Back - Split Fold Down |
![](images/books/497/e88e5b87b06923550ee54f0790edada8.png)
|
|
1.
|
Remove the bolt (A) securing the left rear seat-back
(B).
|
|
![](images/books/497/f3cf4c1273728b342b6d06e475d1c51c.png)
|
|
2.
|
Extend the center seat belt (A), then remove the left
rear seat-back (B).
|
|
![](images/books/497/a458e989ae0d57af4d574c79c42d0a39.png)
|
|

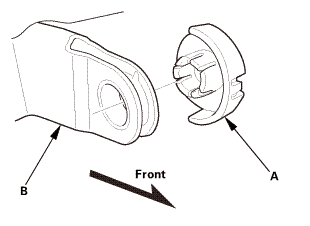

1.
|
If necessary, remove the bushing (A) from the center
pivot bracket (B).
|
|
![](images/books/497/e5e09a2411d065cbe8535a4b9df2f345.png)
|
|
1.
|
Remove the bolt (A) securing the rear seat cushion (B).
|
|
![](images/books/497/652c22502c7b1bc027b8a1d3c6332ebb.png)
|
|
2.
|
While pushing down the rear seat cushion (A), pull the
seat hook handles (B) to release the hooks (C).
|
|
3.
|
Remove the rear seat cushion.
|
|
6. |
Pivot Bracket - Split Fold Down |
![](images/books/497/71db682fd6ac5f90511a347d98e726c3.png)
|
|

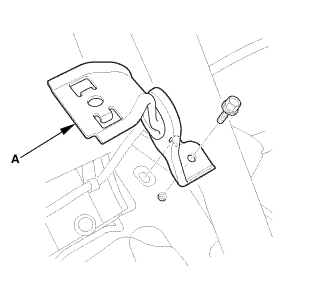

1.
|
Remove the pivot bracket (A).
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)
Installation
1. |
Pivot Bracket - Split Fold Down |
![](images/books/497/946a841f973931f01b5c783e7bc7cc6a.png)
|
|

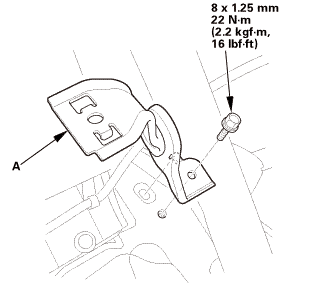

1.
|
Install the pivot bracket (A).
|
|
![](images/books/497/dae32ef6e9f587ba7bf1cf710d15019a.png)
|
|
1.
|
Install the hooks (A) to the rear seat cushion clips
(B).
|
|
![](images/books/497/6f310e6330dde36c0291d0de6226a8b1.png)
|
|
2.
|
Install the bolt (A) securing the rear seat cushion (B).
|
|
![](images/books/497/a458e989ae0d57af4d574c79c42d0a39.png)
|
|
1.
|
If necessary, install the bushing (A) to the center pivot
bracket (B).
|
|
4. |
Left Rear Seat-Back - Split Fold Down |
![](images/books/497/fc225b79230f5d232b80f6680595c598.png)
|
|
1.
|
Extend the center seat belt (A), then install the pivot
shaft (B) to the center pivot bracket (C).
|
|
![](images/books/497/e7e5ff9a3754e9415c00bad684137fa3.png)
|
|
2.
|
Install the left rear seat-back (A).
|
|
5. |
Center Pivot Bracket - Split Fold Down |
![](images/books/497/7574d3175b364453a29d067da73b2b9c.png)
|
|
1.
|
If necessary, install the bushing (A).
|
|
2.
|
Install the center pivot bracket (B).
|
|
6. |
Right Rear Seat-Back - Split Fold Down |
![](images/books/497/216cc669c1903ccc4b3fbc79f3797e74.png)
|
|
1.
|
Install the right rear seat-back (A).
|
|
