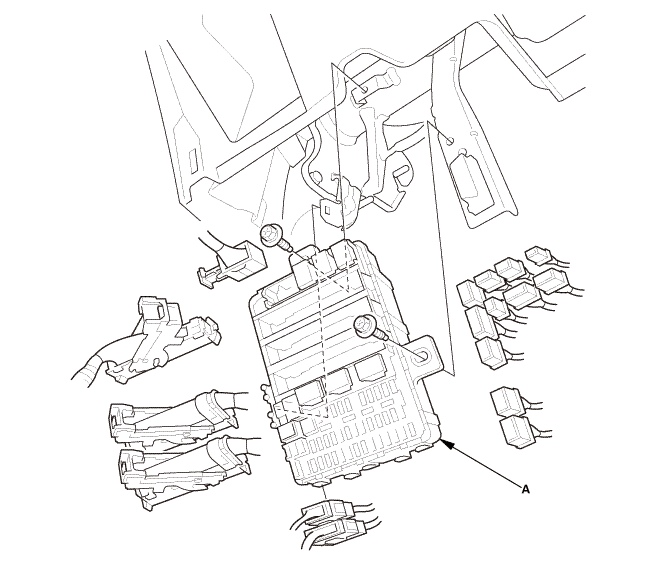

Honda Civic Service Manual: Under-Dash Fuse/Relay Box Removal and Installation (KA KX models without Keyless Access System)

1.

Make sure the ignition switch is in LOCK (0), or the vehicle ignition in the OFF mode.

2.

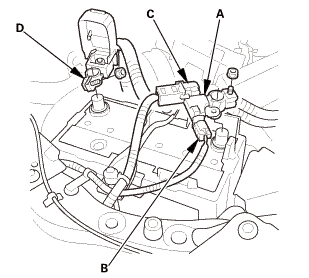

Disconnect and isolate the negative cable with the battery sensor (A) from the battery.

NOTE:

3.

Disconnect the positive cable (D) from the battery.

1.

Remove the driver's dashboard lower cover (A).

1.

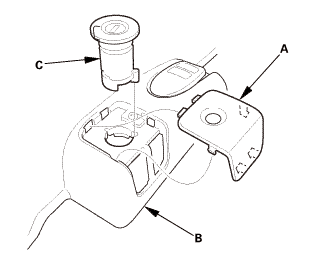

Remove the cap (A) from the front door sill trim (B).

2.

Remove the opener lock cylinder (C).

3.

Remove the screw (A).

4.

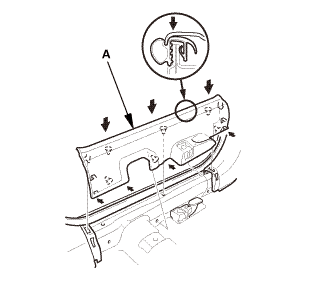

Remove the front door sill trim (A).

1.

Pull out the front door opening seal (A) as needed.

2.

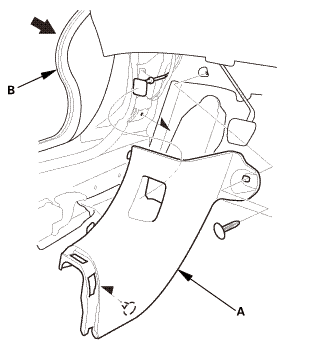

Remove the kick panel (B).

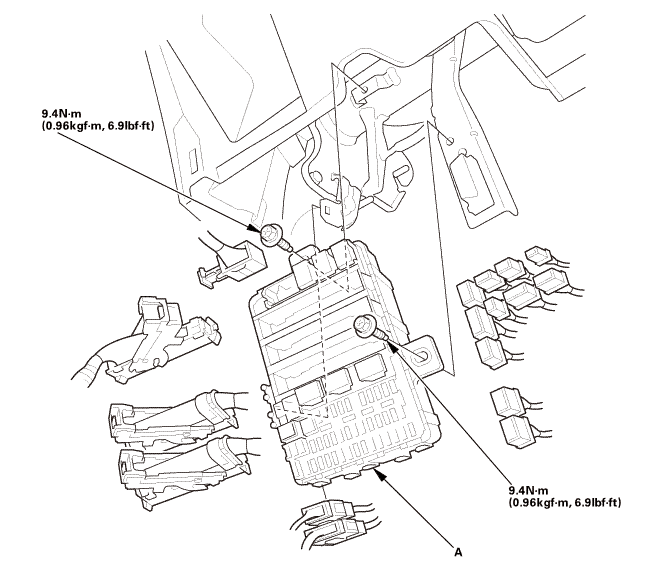

1.

Install the kick panel (A).

2.

Install the front door opening seal (B).

1.

Install the front door sill trim (A).

2.

Install the screw (A).

3.

Install the opener lock cylinder (A).

4.

Install the cap (B) to the front door sill trim (C).

1.

Install the driver's dashboard lower cover (A).

NOTE: If the battery performs abnormally, test the battery.

1.

Clean the battery terminals.

2.

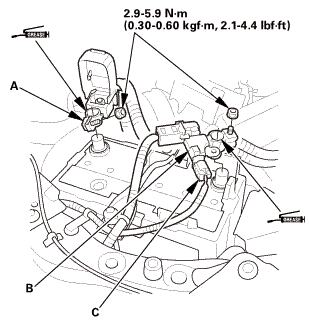

Connect the positive cable (A) to the battery.

NOTE: Always connect the positive side first.

3.

Connect the negative cable and the battery sensor (B) to the battery.

NOTE: To protect the battery sensor connector (C) from damage, do not hold it when installing the negative terminal.

4.

Apply multipurpose grease to the terminals to prevent corrosion.

1.

Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2.

Turn the ignition switch to ON (II).

3.

Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

NOTE:

Add One New Key/Keyless Transmitter

1.

Have a registered key, a new immobilizer key, and the first password from the iN system.

2.

Select IMMOBI from the SYSTEM SELECTION MENU, then select IMMOBILIZER SETUP.

3.

Select Add and Delete Keys, then Add 1 key.

4.

Do the registration according to the instructions on the HDS screen.

5.

Check if the engine can be started with the newly registered key.

6.

When prompted by the HDS, do the keyless transmitter programming.

7.

Make sure the keyless transmitter's operation works properly.

Add and Delete Key/Keyless Transmitter, Then Select Delete or Add Keys

1.

Have a registered key, a new immobilizer key, and the first password from the iN system.

2.

Select IMMOBI from the SYSTEM SELECTION MENU, then select IMMOBILIZER SETUP.

3.

Select Add and Delete Keys, or Delete or Add Multiple Keys.

4.

Do the registration according to the instructions on the HDS screen.

5.

Check if the engine can be started with the newly registered key.

6.

When prompted by the HDS, do the keyless transmitter programming.

7.

Make sure the keyless transmitter's operation works properly.

All Keys are Lost

1.

Prepare all new keys and have the immobilizer PCM code.

2.

Select IMMOBI from the SYSTEM SELECTION MENU, then select IMMOBILIZER SETUP.

3.

Select Add and Delete Keys, then ALL KEYS LOST.

4.

Do the registration according to the instructions on the HDS screen.

5.

Check if the engine can be started with the newly registered keys.

6.

When prompted by the HDS, do the keyless transmitter programming.

7.

Make sure the keyless transmitter's operation works properly.

1.

Confirm that all systems work properly.
