Honda Civic Service Manual: Rear Door Sash Outer Trim Removal and Installation (4-door)

Honda Civic Service Manual / Body / Doors and Enclosures / Doors / Rear Door Sash Outer Trim Removal and Installation (4-door)

8291A7 LEFT

8301A7 RIGHT

Removal

1. Rear Door Rear Sash Outer Trim

1.

Remove the door rear sash outer trim (A).
2. Rear Door Sash Outer Trim

1.

Slide the door glass outer weatherstrip (A).

2.

Remove the door sash outer trim (B).

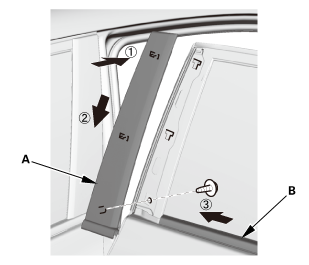

Installation

1. Rear Door Sash Outer Trim

1.

Install the door sash outer trim (A).

2.

Slide the door glass outer weatherstrip (B).
2. Rear Door Rear Sash Outer Trim

1.

Install the door rear sash outer trim (A).
