Honda Civic Service Manual: Front Fog Light Adjustment ('13-'14: 4-door)

Honda Civic Service Manual / Body / Doors and Enclosures / Doors / Front Fog Light Adjustment ('13-'14: 4-door)

1. Front Fog Light - Adjustment

Before adjusting the front fog light:

Park the vehicle on a level surface.

Make sure the tire pressures are correct

The driver or someone who weights the same should sit in the driver's seat (or an equivalent amount of weight).

Unload the vehicle.

The front fog lights should aim down slightly. To check for proper adjustment:

1.

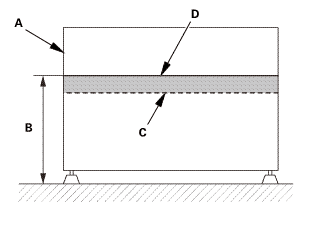

Park the vehicle in front of a wall or a screen (A).

2.

Turn the front fog lights on.

3.

Determine if the front fog lights are aimed properly:

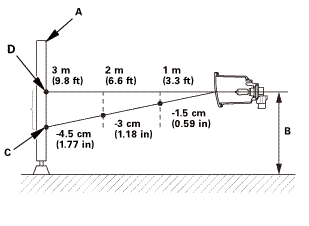

Measure the height of the front fog lights (B).

On the screen or wall, mark the height of the front fog lights with a piece of tape (C).

With the vehicle parked 3 m (9.8 ft) from the screen, the top of the front fog light beam should be 4.5 cm (1.77 in) (D) below the tape mark.

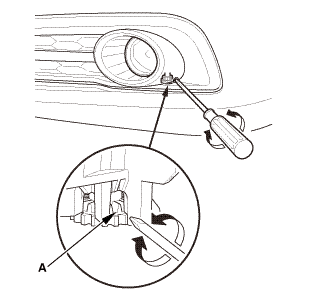

Except Si model

Si model

4.

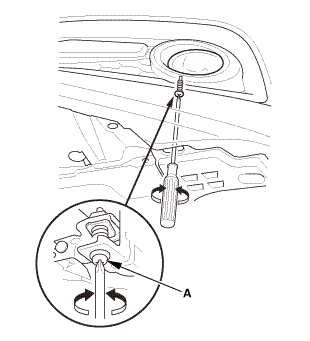

Adjust the front fog lights by turning the adjuster (A).

Front Fog Light Adjustment ('12, '13: 2-door)
