Honda Civic Service Manual: Trunk Lid Lock Cylinder Removal and Installation (KC 2-door DX models,
4-door DX models)
823110
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
Removal
![](images/books/497/26f7ad479284c85fba0c7f48452a5dc0.png)
|
|
1.
|
For some models: Remove the trunk lid trim panel (A).
|
|
![](images/books/497/b041792c0f9c5dec899bac0d7515339c.png)
|
|
2.
|
Pull out the rear license trim (A) to release the clip
pins (B) from the clip grommets (C) on the trunk lid.
|
|
NOTE: The clip grommets will stay on the trunk lid.
|
|
![](images/books/497/3d36ffc0d55167a5b8c3743a80a0d7d2.png)
|
|
3.
|
Remove the clip grommets (A) from the trunk lid.
|
|
4.
|
Install the clip grommets into the clip pins on the rear
license trim.
|
|
NOTE: If the clip pins and the clip grommets are damaged
or stress-whitened, replace them as an assembly with new
ones.
|
|
3. |
Trunk Lid Lock Cylinder |
![](images/books/497/4bda3172880062943835fe7848333732.png)
|
|
1.
|
Disconnect the cylinder rod (A).
|
|
![](images/books/497/c7ab3a331b29c416ef014c0340e96149.png)
|
|

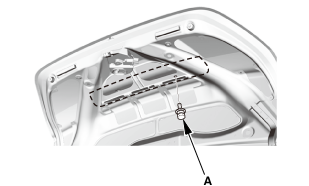

2.
|
Remove the bolt (A) securing the trunk lid lock cylinder
(B).
|
|
![](images/books/497/6121d65eb5f2689f84c2943d50fdcfc2.png)
|
|
3.
|
Remove the bolt (A) securing the trunk lid lock cylinder
(B).
|
|
![](images/books/497/b4314e6ce54479f63bb1b859cc3dc59e.png)
|
|
4.
|
Remove the trunk lid lock cylinder (A).
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)
Installation
1. |
Trunk Lid Lock Cylinder |
![](images/books/497/f366f347a7d15a53eb40029cc25813c4.png)
|
|
1.
|
Install the trunk lid lock cylinder (A).
|
|
![](images/books/497/b5f60be6346d7f9e6f2901a37bc71f7d.png)
|
|

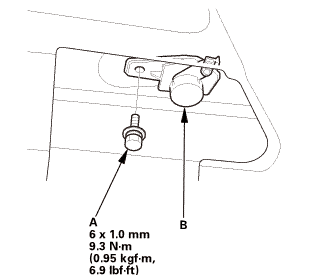

2.
|
Install the bolt (A) securing the trunk lid lock cylinder
(B).
|
|
1.amm93mm
|
|

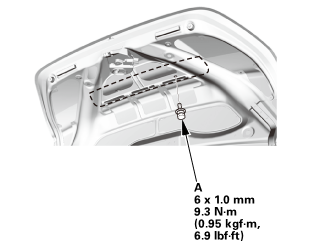

3.
|
Install the bolt (A) securing the trunk lid lock cylinder
(B).
|
|
![](images/books/497/ff75fd5e8dcd56dd5d73f1f4b762dc34.png)
|
|
4.
|
Connect the cylinder rod (A).
|
|
![](images/books/497/50294f6597478300075a722e2186675f.png)
|
|
1.
|
Hold up the rear license trim (A), and fit the clips
into the holes in the trunk lid.
|
|
2.
|
Push on the trim until the clips snap into place securely.
|
|
![](images/books/497/98ada347af19047b168f01ac8a0a6e14.png)
|
|
1.
|
For some models: Install the trunk lid trim panel (A).
|
|
823110
Removal
1.
Trunk Lid Lock Cylinder
1.
Disconnect ...
Removal
1.
Trunk Floor Cover
1.
Fold down the seat-back(s). ...
