Honda Civic Service Manual: Transmission Fluid Pressure Switch B (3rd Clutch) Removal and Installation (A/T)

Honda Civic Service Manual / Powertrain / Transmission/Transaxle / Automatic / Transmission Unit / Transmission Fluid Pressure Switch B (3rd Clutch) Removal and Installation (A/T)

2221A3 FRONT

1. Vehicle Lift

1.

Raise the vehicle on a lift, and make sure it is securely supported.


2. Engine Undercover

1.

Remove the engine undercover (A).


3. Transmission Fluid Pressure Switch B (3rd Clutch)

1.

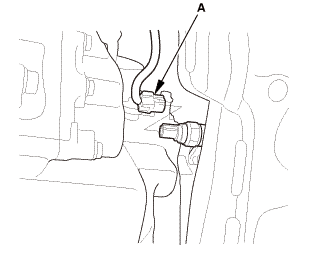

Disconnect the connector (A).


2.

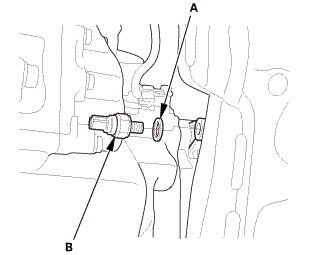

Remove transmission fluid pressure switch B (3rd clutch) with the sealing washer (A).


1. Transmission Fluid Pressure Switch B (3rd Clutch)

1.

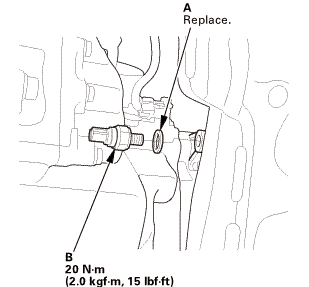

Install transmission fluid pressure switch B (3rd clutch) using a new sealing washer (A) by turning the metal part, not the plastic part.


2.

Check the connector (A) for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.


2. Engine Undercover

1.

Install the engine undercover (A).
