Honda Civic Service Manual: Rocker Arm Oil Pressure Sensor (EOP Sensor) Removal and Installation (Except K24Z7 and R18Z1 (CVT))

Honda Civic Service Manual / Powertrain / Transmission/Transaxle / Automatic / Rocker Arm Oil Pressure Sensor (EOP Sensor) Removal and Installation (Except K24Z7 and R18Z1 (CVT))

1211K2

1. EOP Sensor

1.

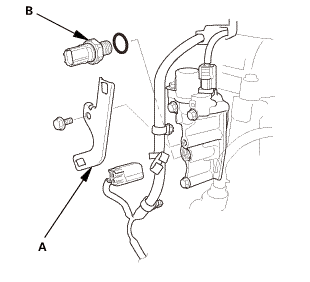

Remove the bracket (A) and the EOP sensor (B).


1. EOP Sensor

(2m,inu.n

1.

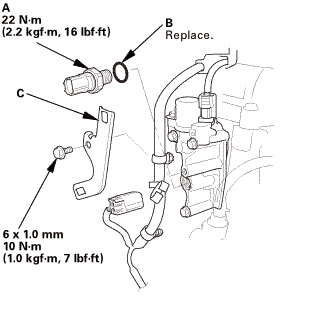

Install the EOP sensor (A) with a new O-ring (B) and the bracket (C).
