Honda Civic Service Manual: Rear Door Glass Outer Weatherstrip Removal and Installation (4-door)

Honda Civic Service Manual / Body / Glass & Windows / Side Windows / Rear Door Glass Outer Weatherstrip Removal and Installation (4-door)

8241F0 LEFT

8251F1 RIGHT

Removal

1. Rear Door Power Window Switch Panel

1.

Remove the power window switch panel (A).
2. Rear Door Panel

1.

Remove the inner handle cap (A).

2.

Remove the screw (A).

3.

Remove the screw (A).

4.

Remove the door panel (A).
3. Rear Door Rear Sash Outer Trim

1.

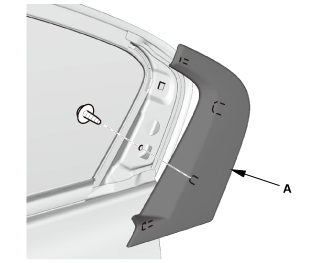

Remove the door rear sash outer trim (A).
4. Rear Door Glass Outer Weatherstrip

1.

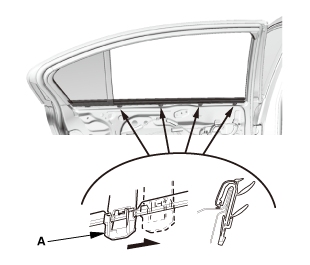

Slide the clips (A).

2.

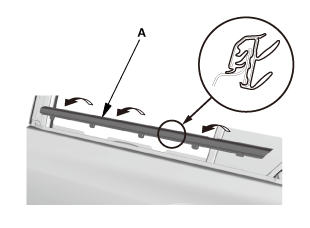

Remove the door glass outer weatherstrip (A).

Installation

1. Rear Door Glass Outer Weatherstrip

1.

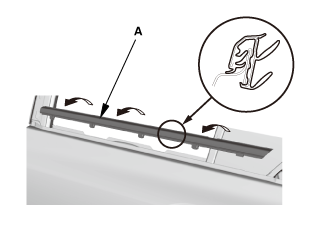

Install the door glass outer weatherstrip (A).

2.

Slide the clips (A) securely onto the flanges.
2. Rear Door Rear Sash Outer Trim

1.

Install the door rear sash outer trim (A).
3. Rear Door Panel

1.

Install the door panel (A).

2.

Install the screw (A).

3.

Install the screw (A).

4.

Install the inner handle cap (A).
4. Rear Door Power Window Switch Panel

1.

Install the power window switch panel (A).
