Honda Civic Service Manual: Front Fog Light Bulb Removal and Installation ('13-'14: 4-door)
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
Except Si model
![](images/books/497/ac14616ad49a1362330311ec5b56f51d.png)
Si model
![](images/books/497/b5c4f57e3ef7debaa2e419f4b9047dfb.png)
|
|
1.
|
Remove the front fog light trim (A).
|
|
Except Si model
![](images/books/497/1f15dd07774bb82d7766f38a025c4022.png)
Si model
![](images/books/497/81b77ef502a35b346a22555a80bc0b28.png)
|
|
1.
|
Remove the front fog light (A).
|
|
2.
|
Disconnect the connector.
|
|
Except Si model
![](images/books/497/d6ac969d1f951e954871f7288dd7b18e.png)
Si model
![](images/books/497/05f24cb5ce938430e0d3d30d878693a9.png)
|
|
1.
|
Turn the bulb (A) 45 ° counterclockwise to remove it from the
housing.
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)

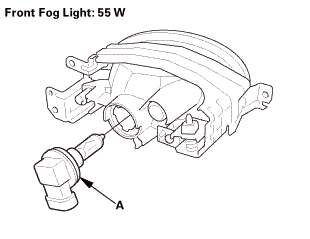

Except Si model
![](images/books/497/d6ac969d1f951e954871f7288dd7b18e.png)

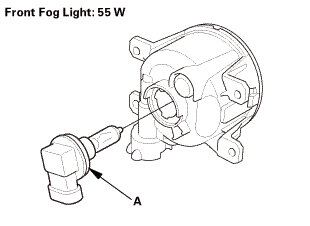

Si model
![](images/books/497/05f24cb5ce938430e0d3d30d878693a9.png)
|
|
1.
|
Turn the bulb (A) 45 ° clockwise to install it to the housing.
|
|
Except Si model
![](images/books/497/1f15dd07774bb82d7766f38a025c4022.png)
Si model
![](images/books/497/81b77ef502a35b346a22555a80bc0b28.png)
|
|
1.
|
Connect the connector.
|
|
2.
|
Install the front fog light (A).
|
|
Except Si model
![](images/books/497/ac14616ad49a1362330311ec5b56f51d.png)
Si model
![](images/books/497/b5c4f57e3ef7debaa2e419f4b9047dfb.png)
|
|
1.
|
Install the front fog light trim (A).
|
|
4. |
Front Fog Light - Adjustment |
![](images/books/497/a8e0bcc33ecd03d401bf59d6ffcc0c57.png)
![](images/books/497/51834da92fb8c3c4bebd6982132a60e9.png)
|
Before adjusting the front fog light:
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
Park the vehicle on a level surface.
|
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
Make sure the tire pressures are correct
|
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
The driver or someone who weights the same should sit
in the driver's seat (or an equivalent amount of weight).
|
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
Unload the vehicle.
|
|
The front fog lights should aim down slightly. To check for proper
adjustment:
|
|
1.
|
Park the vehicle in front of a wall or a screen (A).
|
|
2.
|
Turn the front fog lights on.
|
|
3.
|
Determine if the front fog lights are aimed properly:
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
Measure the height of the front fog lights (B).
|
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
On the screen or wall, mark the height of the
front fog lights with a piece of tape (C).
|
|
|
![](images/books/497/ca917ac4d6580542ad28730916ef1daa.png)
|
With the vehicle parked 3 m (9.8 ft) from the
screen, the top of the front fog light beam should
be 4.5 cm (1.77 in) (D) below the tape mark.
|
|
|
|
Except Si model
![](images/books/497/5d74693168ce68573204129b82abd69f.png)
Si model
![](images/books/497/1dc41cd579561a4473d84a6216ae99a2.png)
|
|
4.
|
Adjust the front fog lights by turning the adjuster (A).
|
|
1.
Front Fog Light - Adjustment
Before adjusting the front fog light:
...
019106 LEFT
019107 RIGHT
Removal
1.
Front Fog Light Assembly
1.
Remove the front fog light assembly (A) fro ...
