Honda Civic Service Manual: Front Door Glass Outer Weatherstrip Removal and Installation
(4-door)
8241C8 LEFT
8241C9 RIGHT
Removal
| 1. |
Front Door Power Window Switch Panel (4-door) |
|
|
|
1.
|
Remove the power window switch panel
(A).
|
|
| 2. |
Front Door Panel - Driver's Side (4-Door) |
|
|
|
1.
|
Remove the inner handle cap (A).
|
|
|
|
|
4.
|
Remove the door panel (A).
|
|
| 3. |
Front Door Plastic Cover As Needed (4-door) |
|
|
|
1.
|
Detach the harness clip (A).
|
|
2.
|
Remove the plastic cover (B) as needed.
|
|
| 4. |
Front Door Glass Outer Weatherstrip |
|
|
|
2.
|

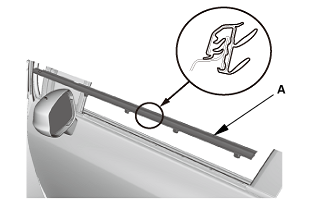

Remove the door glass outer weatherstrip
(A).
|
|
Installation
| 1. |
Front Door Glass Outer Weatherstrip |
|
|
|
1.
|

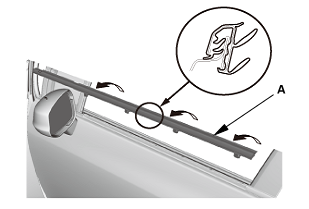

Install the door glass outer weatherstrip
(A).
|
|
|
|
|
2.
|

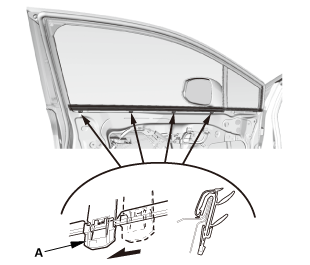

Slide the clips (A) onto the flanges.
|
|
| 2. |
Front Door Plastic Cover as Needed (4-door) |
|
|
|
1.
|
Install the plastic cover (A).
|
|
2.
|
Attach the harness clip (B).
|
|
| 3. |
Front Door Panel - Driver's Side (4-Door) |
|
|
|
1.
|
Install the door panel (A).
|
|
|
|
|
2.
|
Install the screw (A).
|
|
|
|
|
3.
|
Install the screw (A).
|
|
|
|
|
4.
|
Install the inner handle cap (A).
|
|
| 4. |
Front Door Power Window Switch Panel (4-door) |
|
|
|
1.
|
Install the power window switch panel
(A).
|
|
8351A4 LEFT INNER
8361A4 RIGHT INNER
Removal
1.
Front Door Power Window Switch Panel (4-door)
...
Removal
1.
Rear Door Power Window Switch Panel
...
