Honda Civic Service Manual: Front Door Glass Outer Weatherstrip Removal and Installation
(4-door)
8241C8 LEFT
8241C9 RIGHT
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
Removal
1. |
Front Door Power Window Switch Panel (4-door) |
![](images/books/497/f59036a610d3f388489b2a3560347d42.png)
|
|
1.
|
Remove the power window switch panel
(A).
|
|
2. |
Front Door Panel - Driver's Side (4-Door) |
![](images/books/497/ad5d4d47f691b652cfdd9ac864b2484a.png)
|
|
1.
|
Remove the inner handle cap (A).
|
|
![](images/books/497/62795f36dcf3226a44f39ca7d8bfa725.png)
|
|
4.
|
Remove the door panel (A).
|
|
3. |
Front Door Plastic Cover As Needed (4-door) |
![](images/books/497/e28b1dcf2a806d869b070e2108dd903a.png)
|
|
1.
|
Detach the harness clip (A).
|
|
2.
|
Remove the plastic cover (B) as needed.
|
|
4. |
Front Door Glass Outer Weatherstrip |
![](images/books/497/086e71d9973632196048961fb559c9a2.png)
|
|
2.
|
Remove the door glass outer weatherstrip
(A).
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)
Installation
1. |
Front Door Glass Outer Weatherstrip |
![](images/books/497/50b6c73169fde7b4b306b9094a068b99.png)
|
|
1.
|
Install the door glass outer weatherstrip
(A).
|
|
![](images/books/497/d665170a7210c3f36f306f3940f48732.png)
|
|

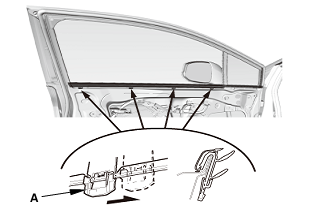

2.
|
Slide the clips (A) onto the flanges.
|
|
2. |
Front Door Plastic Cover as Needed (4-door) |
![](images/books/497/5c0f2f54a49cc9017fd0b369d03bf1f7.png)
|
|
1.
|
Install the plastic cover (A).
|
|
2.
|
Attach the harness clip (B).
|
|
3. |
Front Door Panel - Driver's Side (4-Door) |
![](images/books/497/0884e7a4256f3eba77d31639f11c7409.png)
|
|
1.
|
Install the door panel (A).
|
|
![](images/books/497/ac7f57a73da6c4b55e46e3fa7e42d1cc.png)
|
|
2.
|
Install the screw (A).
|
|
![](images/books/497/01edadbcb7e905ac1457219fa1974d7d.png)
|
|
3.
|
Install the screw (A).
|
|
![](images/books/497/e78cb5f3e7e68b79f5960902fd075e0c.png)
|
|
4.
|
Install the inner handle cap (A).
|
|
4. |
Front Door Power Window Switch Panel (4-door) |
![](images/books/497/c3e70a2d5a3ea8d1f65090b8bf23e275.png)
|
|
1.
|
Install the power window switch panel
(A).
|
|
8351A4 LEFT INNER
8361A4 RIGHT INNER
