Honda Civic Service Manual: Front Door Glass Inner Weatherstrip Removal and Installation (4-door)

Honda Civic Service Manual / Body / Body Exterior / Weatherstripping / Front Door Glass Inner Weatherstrip Removal and Installation (4-door)

8351A4 LEFT INNER

8361A4 RIGHT INNER

Removal

1. Front Door Power Window Switch Panel (4-door)

1.

Remove the power window switch panel (A).

2. Front Door Panel - Driver's Side (4-Door)

1.

Remove the inner handle cap (A).

2.

Remove the screw (A).

3.

Remove the screw (A).

4.

Remove the door panel (A).

3. Front Door Glass Inner Weatherstrip (4-door)

1.

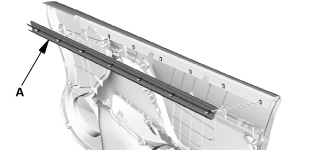

Remove the door glass inner weatherstrip (A).

Installation

1. Front Door Glass Inner Weatherstrip (4-door)

1.

Install the door glass inner weatherstrip (A).

2. Front Door Panel - Driver's Side (4-Door)

1.

Install the door panel (A).

2.

Install the screw (A).

3.

Install the screw (A).

4.

Install the inner handle cap (A).

3. Front Door Power Window Switch Panel (4-door)

1.

Install the power window switch panel (A).
