Honda Civic Service Manual: Battery Removal and Installation

Honda Civic Service Manual / Electrical / Battery System / Battery Removal and Installation

Removal

1. Battery Terminal - Disconnection


1.

Make sure the ignition switch is in LOCK (0).


2.

Disconnect and isolate the negative cable and battery sensor (A) from the battery.


NOTE: Always disconnect the negative side first.


3.

Disconnect the positive cable (B) from the battery.


2. Battery

1.

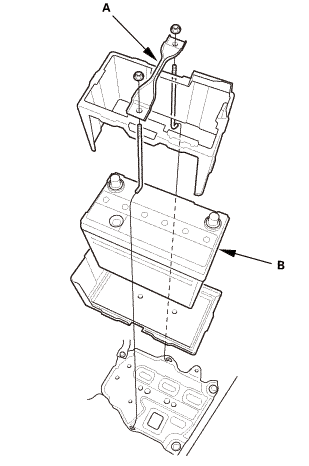

Remove the battery setting plate (A) and the battery (B).


Installation

1. Battery

1.

Install the battery (A) and the battery setting plate (B).


NOTE: Do not deform the battery setting plate by over-tightening the nuts.


2. Battery Terminal - Reconnection


NOTE: If the battery performs abnormally, test the battery.


1.

Clean the battery terminals.


2.

Connect the positive cable (A) to the battery.


NOTE: Always connect the positive side first.


3.

Connect the negative cable and battery sensor (B) to the battery.


4.

Apply multipurpose grease to the terminals to prevent corrosion.
