Honda Civic Service Manual: A/T Gear Position Indicator Panel Assembly Removal and Installation (A/T, CVT)
![](images/books/440/ba3801558678acbff3e57341c7096d6f.png)
NOTE: Do not wipe off the special grease applied to the area of the shift
lever marked with an asterisk (*) when you disassemble it.
|
1. |
Shift Lever Knob and Shift Lever Knob Ring |
![](images/books/440/8a07b1da8b0fa6c28776ae1e5ae0144a.png)
|
|
1.
|

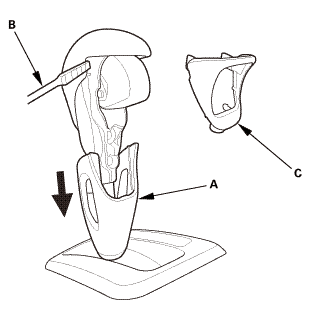

Pull down the shift lever ring (A).
|
|
2.
|
Wrap the end of a flat-tip screwdriver (B) with tape, remove
the shift lever knob ring (C).
|
|
![](images/books/440/3835c1e5c15524a89e17478db56a97fd.png)
|
|

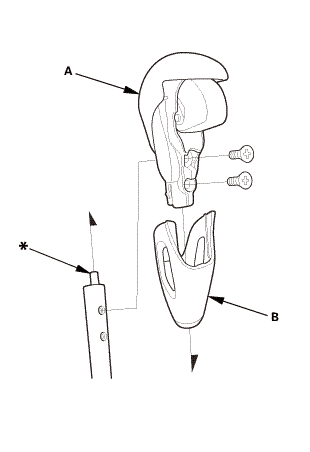

3.
|
Remove the shift lever knob (A) and the shift lever ring (B).
|
|
2. |
Center Console Panel Assembly (Except '12M M/T) |
![](images/books/440/04828ca29e5f1f5e147326c9672b2ee6.png)
|
|
2.
|

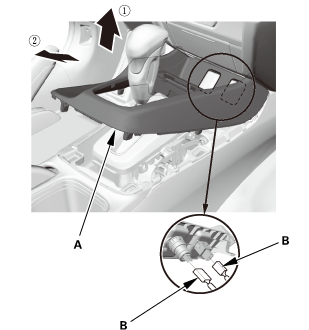

Remove the center console panel (A).
|
|
3.
|
For some models: Disconnect the connector(s) (B).
|
|
3. |
A/T Gear Position Indicator Panel Assembly (Type A Shift Lever) |
![](images/books/440/791695f343bbded46625edd84d7f216c.png)
|
|
1.
|
Disconnect the connector (A).
|
|
2.
|
Remove the A/T gear position indicator panel assembly (B) by
expanding the four lock tabs (C).
|
|
4. |
A/T Gear Position Indicator Panel Assembly (Type B Shift Lever) |
![](images/books/440/5dbe2e1842c767875c8da147772b7e55.png)
|
|
1.
|

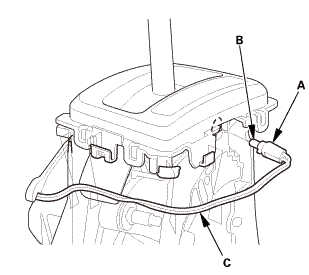

Remove the A/T gear position indicator panel light socket (A).
|
|
2.
|
Remove the A/T gear position indicator panel light bulb (B).
|
|
3.
|
Unhook the A/T gear position indicator panel light harness (C)
from the harness guides.
|
|
![](images/books/440/3e61c24ddb279f45f256b5a205526b1c.png)
|
|
4.
|

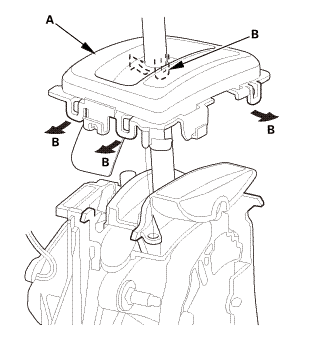

Remove the A/T gear position indicator panel assembly (A) by
expanding the four lock tabs (B).
|
|
![](images/books/440/f740376d3f9f1776a937914799e742a9.png)
NOTE: Do not wipe off the special grease applied to the area of the shift
lever marked with an asterisk (*) when you assemble it.
|
1. |
A/T Gear Position Indicator Panel Assembly (Type A Shift Lever) |
![](images/books/440/168141cadfc2c8c4ae4bc9288fe9c2b0.png)
|
|
1.
|

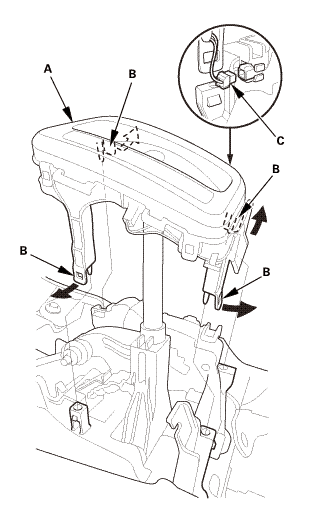

Install the A/T gear position indicator panel assembly (A) by
aligning the four lock tabs (B).
|
|
2.
|
Connect the connector (C).
|
|
2. |
A/T Gear Position Indicator Panel Assembly (Type B Shift Lever) |
![](images/books/440/f1735b1c109ee67298629ee15935af66.png)
|
|
1.
|

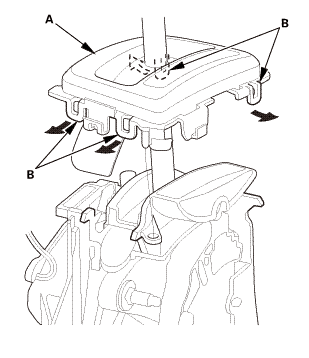

Install the A/T gear position indicator panel assembly (A) by
aligning the four lock tabs (B).
|
|
![](images/books/440/eea5c0dbfbfd46976a8ed040985b6758.png)
|
|
2.
|
Install the A/T gear position indicator panel light bulb (A).
|
|
3.
|
Install the A/T gear position indicator panel light socket (B).
|
|
4.
|
Hook the A/T gear position indicator panel light harness (C)
to the harness guides.
|
|
3. |
Center Console Panel Assembly (Except '12M M/T) |
![](images/books/440/f3654bc7977ba4aec74ab6379dc026a4.png)
|
|
1.
|
For some models: Connect the connector(s) (A).
|
|
2.
|
Install the center console panel (B).
|
|
![](images/books/440/29c69a45340cee7e8775350ce6f9fffb.png)
|
|

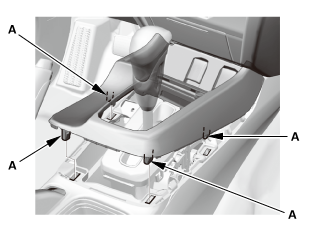

3.
|
Install the clips (A).
|
|
4. |
Shift Lever Knob and Shift Lever Knob Ring |
|
1.
|

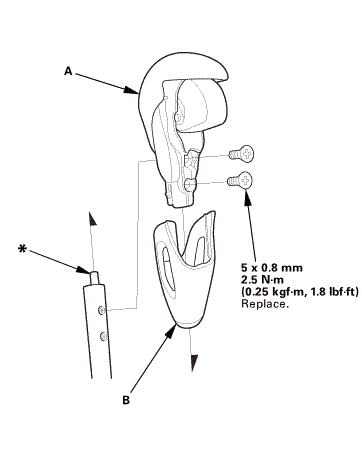

Install the shift lever knob (A) and the shift lever ring (B).
|
mm
![](images/books/440/c007bec40002b6c0c28c13343f21329e.png)
|
|
2.
|

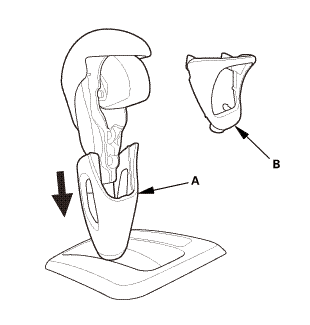

Pull down the shift lever ring (A) if necessary, and install
the shift lever knob ring (B).
|
|
3.
|
Pull up the shift lever ring to secure the knob ring.
|
|
NOTE: Do not wipe off the special grease applied to the area of the shift
lever marked with an asterisk (*) when you disassemble it.
