Honda Civic Service Manual: VSA Off Switch Removal and Installation (Except K24Z7)

Honda Civic Service Manual / Chassis / Brake Control and Vehicle Dynamics / VSA Off Switch Removal and Installation (Except K24Z7)

1. Driver's Dashboard Lower Cover

1.

Remove the driver's dashboard lower cover (A).


2. VSA Off Switch

1.

Remove the VSA OFF switch (A) from the driver's dashboard lower cover (B).

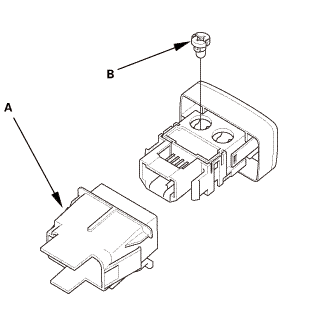

3. VSA Off Switch Bulb ('12 Models)


1.

Remove the cover (A).


2.

Remove the bulb (B).

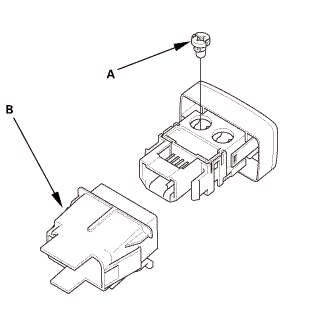

1. VSA Off Switch Bulb ('12 Models)


1.

Install the bulb (A).


2.

Install the cover (B).

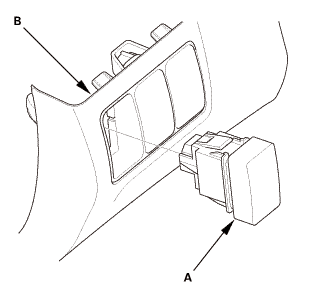

2. VSA Off Switch

1.

Install the VSA OFF switch (A) to the driver's dashboard lower cover (B).


3. Driver's Dashboard Lower Cover

1.

Install the driver's dashboard lower cover (A).
