Honda Civic Service Manual: Right Headlight (Low Beam) Bulb Removal and Installation ('12-'13)

Honda Civic Service Manual / Body / Body Electrical / Lighting / Head Lamp / Right Headlight (Low Beam) Bulb Removal and Installation ('12-'13)

7121E7 RIGHT

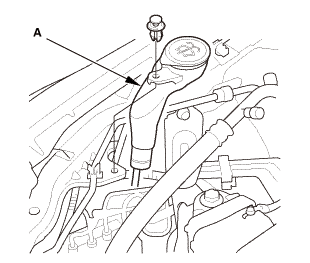

1. Washer Filler Neck

1.

Remove the washer filler neck (A) from the washer reservoir.

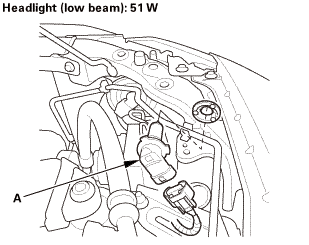

2. Right Headlight Bulb (Low Beam)

1.

Disconnect the connector.

2.

Turn the bulb (A) 45 ° counterclockwise to remove the bulb.

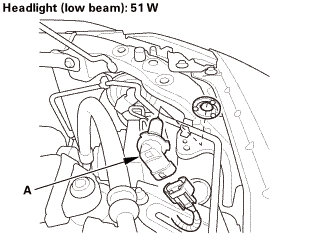

1. Right Headlight Bulb (Low Beam)

1.

Turn the bulb (A) 45 ° clockwise to install the bulb.

2.

Connect the connector.
2. Washer Filler Neck

1.

Install the washer filler neck (A) to the washer reservoir.
