Honda Civic Service Manual: Rear Door Glass Outer Weatherstrip Removal and Installation
(4-door)
8241F0 LEFT
8251F1 RIGHT
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
Removal
1. |
Rear Door Power Window Switch Panel |
![](images/books/497/f0d9cc9154e2d52eaa928a2940978e90.png)
|
|
1.
|
Remove the power window switch panel
(A).
|
|
![](images/books/497/ad5d4d47f691b652cfdd9ac864b2484a.png)
|
|
1.
|
Remove the inner handle cap (A).
|
|
![](images/books/497/0734b2116d782fc99b208b0a287cb2ea.png)
|
|
4.
|
Remove the door panel (A).
|
|
3. |
Rear Door Rear Sash Outer Trim |
![](images/books/497/c563c4842e645c2e7ef3ea68741d7ad2.png)
|
|
1.
|
Remove the door rear sash outer trim
(A).
|
|
4. |
Rear Door Glass Outer Weatherstrip |
![](images/books/497/867cf3bd46191be4e4d9c46bb3fae1dc.png)
|
|
2.
|
Remove the door glass outer weatherstrip
(A).
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)
Installation
1. |
Rear Door Glass Outer Weatherstrip |
![](images/books/497/f0c5f72a2f8bcdf7419842e854bda597.png)
|
|
1.
|
Install the door glass outer weatherstrip
(A).
|
|
![](images/books/497/1476beb5589c0f437d3c04f764264976.png)
|
|
2.
|

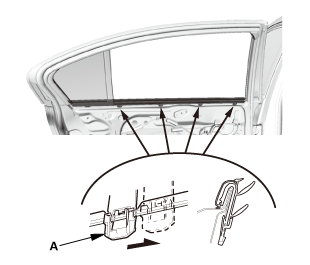

Slide the clips (A) securely onto the
flanges.
|
|
2. |
Rear Door Rear Sash Outer Trim |
![](images/books/497/df545fadec1c5e9568d7f9d7a3ee8174.png)
|
|
1.
|
Install the door rear sash outer trim
(A).
|
|
![](images/books/497/816bf069beec6d5fb04f51a8dfb57632.png)
|
|
1.
|
Install the door panel (A).
|
|
![](images/books/497/3410aef9209ccbb14b20e3c1b35875d8.png)
|
|
2.
|
Install the screw (A).
|
|
![](images/books/497/01edadbcb7e905ac1457219fa1974d7d.png)
|
|
3.
|
Install the screw (A).
|
|
![](images/books/497/ad5d4d47f691b652cfdd9ac864b2484a.png)
|
|
4.
|
Install the inner handle cap (A).
|
|
4. |
Rear Door Power Window Switch Panel |
![](images/books/497/6afda85660f258034bde17653f313e40.png)
|
|
1.
|
Install the power window switch panel
(A).
|
|
