Honda Civic Service Manual: Front Bumper Lower Grille Removal and Installation ('12, '13: 2-door)

Honda Civic Service Manual / Body / Body Exterior / Front Grille / Front Bumper Lower Grille Removal and Installation ('12, '13: 2-door)

8101E7

1. Front Bumper

1.

Remove the screws (A), the bolts (B), and the clips (C, D) securing the front bumper (E).

2.

Pull out the front bumper (A) from the side spacer (B). Repeat this step on the opposite side.

3.

With the help of an assistant, pull out both sides of the front bumper (A) from the upper beam (B).

4.

With the help of an assistant, remove the front bumper (A).

2. Front Bumper Lower Grille

1.

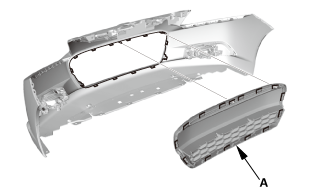

Remove the front bumper lower grille (A).

1. Front Bumper Lower Grille

1.

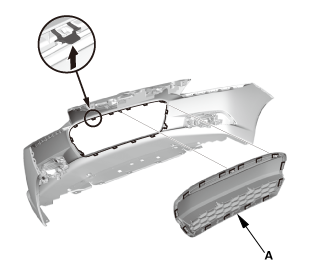

Install the front bumper lower grille (A).

2. Front Bumper

1.

With the help of an assistant, install the front bumper (A).

2.

With the help of an assistant, install both sides of the front bumper (A) to the upper beam (B).

3.

Install the front bumper (A) to the side spacer (B). Repeat this step on the opposite side.

4.

Install the screws (A), the bolts (B), and the clips (C, D) securing the front bumper (E).
