Honda Civic Service Manual: Front Accessory Power Socket Removal and Installation ('13-'14)
![](images/books/497/ba3801558678acbff3e57341c7096d6f.png)
Except K24Z7 engine
![](images/books/497/e109a3cf222908db6e9e9321e22472ee.png)
|
|
1.
|
Except K24Z7 engine: Lower the shift lever boot (A) to release
the hooks from the boot.
|
|
2.
|
Except K24Z7 engine: Remove the shift lever knob (B).
|
|
K24Z7 engine
![](images/books/497/14c14ea57b3bb7b3a644a964ab6dcbfd.png)
|
|
3.
|
K24Z7 engine: Lower the shift lever boot (A) to release the hooks
from the boot.
|
|
4.
|
K24Z7 engine: Loosen the shift lever boot ring (B).
|
|
5.
|
K24Z7 engine: Remove the shift lever knob (C).
|
|
6.
|
K24Z7 engine: Remove the shift lever boot ring.
|
|
2. |
Center Console Panel Assembly |
![](images/books/497/a78d1f986d5a27fd72edb9c603e95a72.png)
|
|

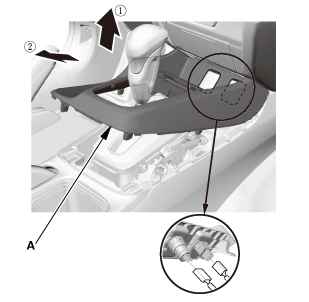

2.
|
Remove the center console panel (A).
|
|
3.
|
Disconnect the connector(s).
|
|
3. |
Front Accessory Power Socket |
![](images/books/497/2c5db33971540957854f5d29da2e3af7.png)
|
|

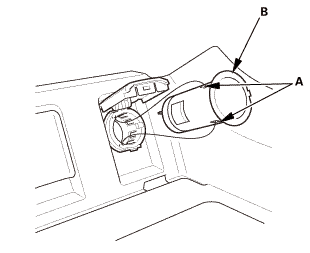

1.
|
Gently press the tabs (A), and remove the front accessory power
socket (B).
|
|
![](images/books/497/84d4d62f19edffda908b5b85c255f4b8.png)
|
|

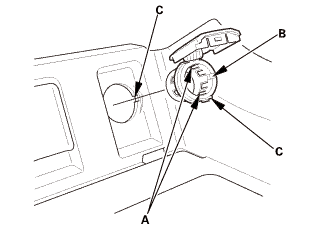

2.
|
Gently press the tabs (A), then remove the housing (B) from the
cover. Note the location of the indexing tabs (C).
|
|
![](images/books/497/f740376d3f9f1776a937914799e742a9.png)
1. |
Front Accessory Power Socket |
![](images/books/497/911f1fb5e4b7383b3250153e071ee6ca.png)
|
|

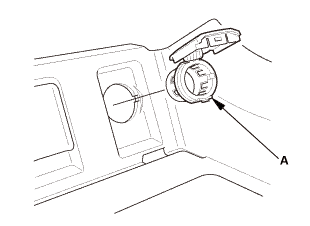

1.
|
Install the housing (A) in its position on the cover.
|
|

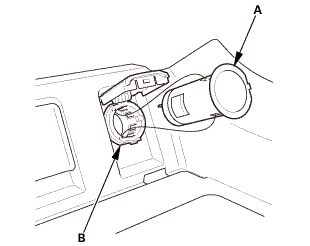

![](images/books/497/660e022c5ac20d8ba52b678a582b25ba.png)
|
|
2.
|
Install the front accessory power socket (A) in the housing (B).
|
|
2. |
Center Console Panel Assembly |
![](images/books/497/66808e79f749e2592dffbe8a53c94e86.png)
|
|
1.
|
Connect the connector(s).
|
|
2.
|
Install the center console panel (A).
|
|
Except K24Z7 engine
![](images/books/497/5e6304a1c727470a97e9bacbebaedad5.png)
|
|
1.
|
Except K24Z7 engine: Install the shift lever knob (A).
|
|
NOTE: Tighten the shift lever knob until the shift pattern is
properly aligned.
|
|
2.
|
Except K24Z7 engine: Connect the shift lever boot (B).
|
|
K24Z7 engine
![](images/books/497/01bb980239c947e01828fdaf85f0c50c.png)
|
|
3.
|
K24Z7 engine: Install and turn the shift lever boot ring (A)
until it reaches the bottom of the threads on the shift lever.
|
|
4.
|
K24Z7 engine: Turn the shift lever knob (B) until the shift lever
knob contacts the shift lever boot ring.
|
|
5.
|
K24Z7 engine: Tighten the shift lever boot ring and the shift
lever knob together with the shift pattern properly aligned.
|
|
6.
|
K24Z7 engine: Connect the shift lever boot (C).
|
|
7351A5
Removal
1.
Center Console Rear Trim
1.
Remove the center console rear trim (A).
...
