Honda Civic Service Manual: Taillight Removal and Installation ('13-'14: 4-door except Natural Gas models)

Honda Civic Service Manual / Body / Body Electrical / Lighting / Tail Lamp / Taillight Removal and Installation ('13-'14: 4-door except Natural Gas models)

1. Trunk Floor Cover

1.

Fold down the seat-back(s).

2.

Remove the front area of the trunk floor cover (A).

3.

Remove the trunk floor cover (A).
2. Trunk Lid Weatherstrip as Needed

1.

Remove the trunk lid weatherstrip (A) as needed.
3. Trunk Rear Trim Panel

1.

Remove the trunk rear trim panel (A).
4. Trunk Side Trim Panel as Needed

1.

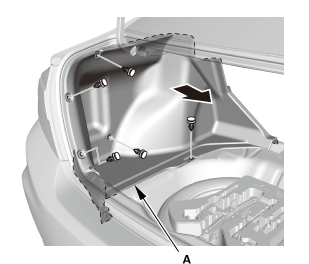

Detach the trunk side trim panel (A) as needed.
5. Taillight

1.

Disconnect the connectors.

2.

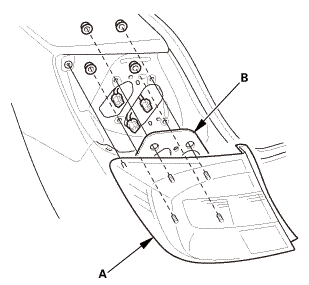

Remove the taillight (A).

3.

Remove the gasket (B) from the taillight.

4.

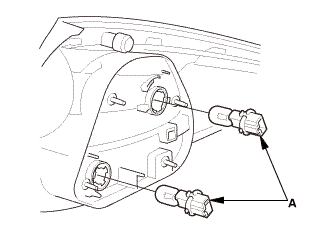

Turn the bulb sockets (A) 45 ° counterclockwise to remove the bulb sockets.

1. Taillight

1.

Turn the bulb sockets (A) 45 ° clockwise to install the bulb sockets.

2.

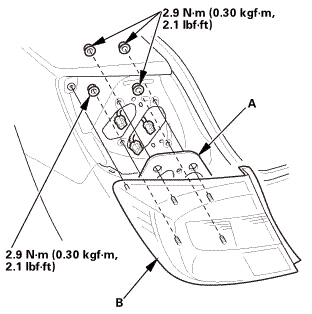

Install the gasket (A) to the taillight (B).

NOTE: Inspect the gasket, replace it if it is distorted or stays compressed.

3.

Install the taillight.

4.

Connect the connectors.
2. Trunk Side Trim Panel

1.

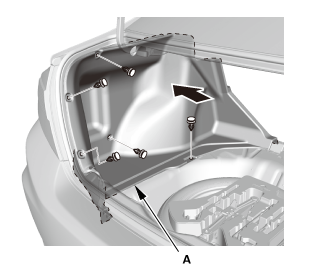

Install the trunk side trim panel (A).
3. Trunk Rear Trim Panel

1.

Install the trunk rear trim panel (A).
4. Trunk Lid Weatherstrip as Needed

1.

Install the trunk lid weatherstrip (A).
5. Trunk Floor Cover

1.

Install the trunk floor cover (A).

2.

Install the front area of the trunk floor cover (A).

3.

Raise the seat-back(s).
