Honda Civic Service Manual: Driver's Center Vent Removal and Installation ('13-'14)

Honda Civic Service Manual / HVAC / Ventilation Ducts / Driver's Center Vent Removal and Installation ('13-'14)

1. Dashboard Center Pocket

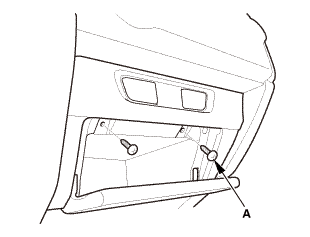

1.

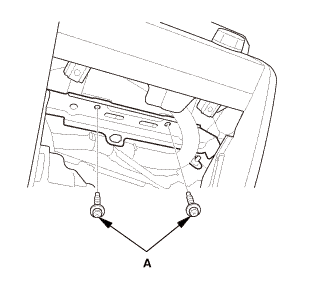

Remove the screws (A).


2.

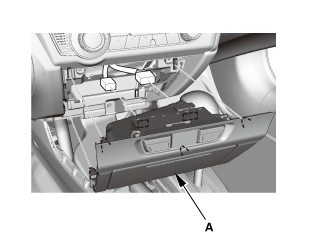

Remove the dashboard center pocket (A).


2. Audio Unit Assembly (With audio panel pocket)

NOTE:

Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Do not work in a dusty or dirty place.

Discharge static electricity from your body before and during the work.

Do not touch the circuit board(s) with your bare hands.

Do not work with dirty hands.

Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it, wipe it off thoroughly.).

Eject the CD before disconnecting the audio unit to prevent damaging the CD player’s load mechanism.

If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the new audio unit.

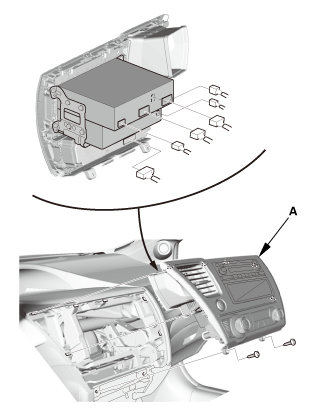

1.

Remove the bolts (A).


2.

Disconnect the connectors, then pull out the audio unit assembly (A).


3. Audio Unit Assembly (With display audio)

NOTE:

Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Do not work in a dusty or dirty place.

Discharge static electricity from your body before and during the work.

Do not touch the circuit board(s) with your bare hands.

Do not work with dirty hands.

Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it, wipe it off thoroughly.).

Eject the CD before disconnecting the audio unit to prevent damaging the CD player’s load mechanism.

If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the new audio unit.

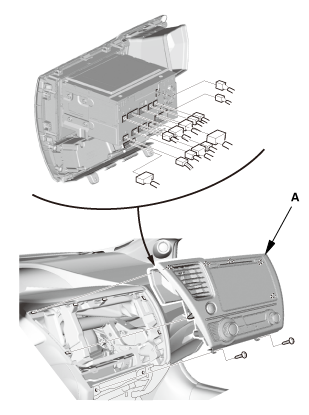

1.

Remove the bolts (A).


2.

Disconnect the connectors, then pull out the audio unit assembly (A).


4. Driver's Center Vent

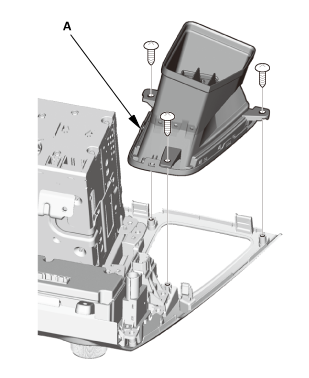

1.

Remove the driver's center vent (A).


1. Driver's Center Vent

1.

Install the driver's center vent (A).


2. Audio Unit Assembly (With display audio)

1.

Connect the connectors, then install the audio unit assembly (A).


NOTE: Make sure all the connectors and the antenna lead are securely connected.


2.

Install the bolts (A).


3. Audio Unit Assembly (With audio panel pocket)

1.

Connect the connectors, then install the audio unit assembly (A).


NOTE: Make sure all the connectors and the antenna lead are securely connected.


2.

Install the bolts (A).


4. Dashboard Center Pocket

1.

Install the dashboard center pocket (A).

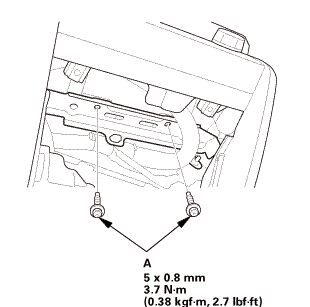

2.

Install the screws (A).


Ventilation Ducts
...

Driver's Vent Removal and Installation
Removal 1. Battery Terminal (SRS) - Disconnection 1. Make sure the ignition switch is in LOCK (0). ...
