Honda Civic Service Manual: Tweeter Removal and Installation
014175 LEFT
014185 RIGHT
Removal
|
NOTE: SRS components are located in this area. Review the SRS component
locations and the precautions and procedures before doing repairs or service.
|
| 1. |
Front Door Opening Seal as Needed |
|
|
|
1.
|

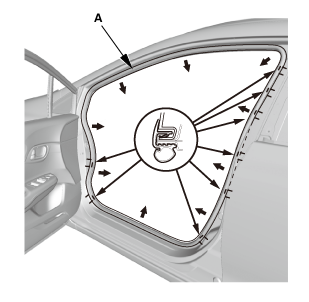

Remove the front door opening seal (A) as needed.
|
|
|
|
|
1.
|

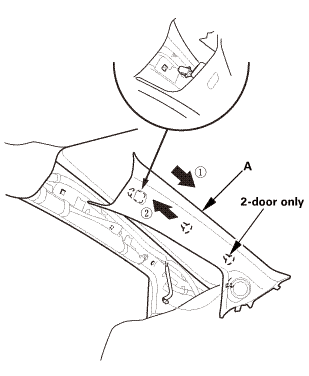

Pull out the A-pillar trim (A) to release the clips.
|
|
|
|
|
2.
|

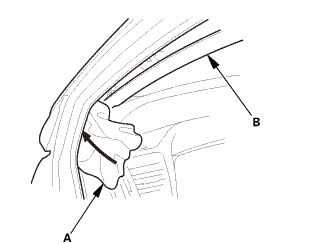

Put a shop towel (A) in the opening between the A-pillar trim
(B) and the dashboard to prevent dropping the A-pillar clips.
|
|
|
|
|
3.
|

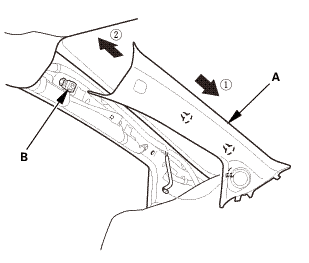

Remove the A-pillar trim (A).
|
|
NOTE: The upper clip (B) will stay in the body.
|
|
|
|
|
4.
|

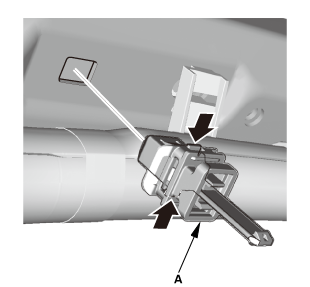

Remove the upper clip (A) from the body.
|
|
|
|
|
1.
|

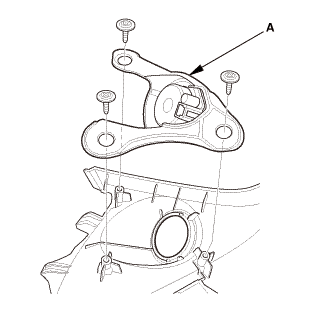

Remove the tweeter (A).
|
|
Installation
|
NOTE: SRS components are located in this area. Review the SRS component
locations and the precautions and procedures before doing repairs or service.
|
|
|
|
1.
|
Install the tweeter (A).
|
|
|
|
|
1.
|

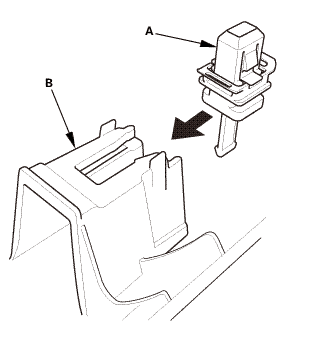

Carefully install the new upper clip (A) to the A-pillar trim
(B).
|
|
|
|
|
2.
|

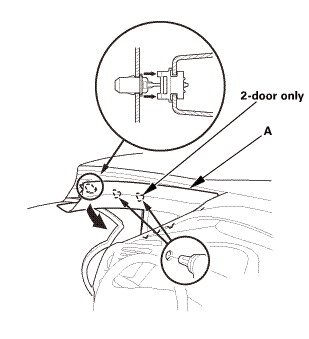

Install the A-pillar trim (A).
|
|
NOTE:
|
|
|
Make sure the side curtain airbag is not tucked
under the clips or the trim ribs.
|
|
|
|
Do not push too hard on the A-pillar trim. If
you push too hard, the clip will be damaged, and
it will not hold the trim properly.
|
|
|
|
Gently tug on the A-pillar trim to verify that
all clips are securely fastened.
|
|
|
|
| 3. |
Front Door Opening Seal as Needed |
|
|
|
1.
|
Install the front door opening seal (A).
|
|
012140
Removal
NOTE: SRS components are located in this area. Review the SRS component
locations and the precautions and procedures before doing repairs or service.
...
