Honda Civic Service Manual: Recirculation Control Motor Removal and Installation

Honda Civic Service Manual / HVAC / Ventilation Doors / Recirculation Control Motor Removal and Installation

613170

Glove Box

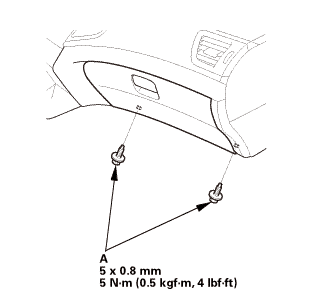

Remove the bolts (A).

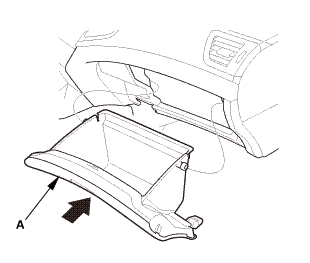

Remove the glove box (A).

2.	Passenger's Heater Duct

Remove the passenger's heater duct (A).

3.	Cross Brace

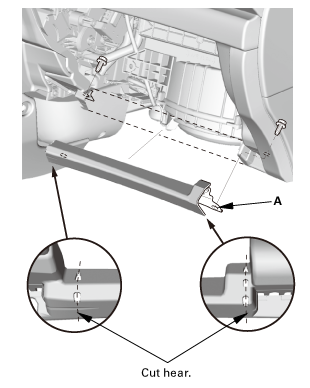

	1.	Cut the cross brace (A) in the glove box opening with diagonal cutters in the area shown.
		NOTE: Retain the cross brace to be reinstalled later.

Remove the cross brace.

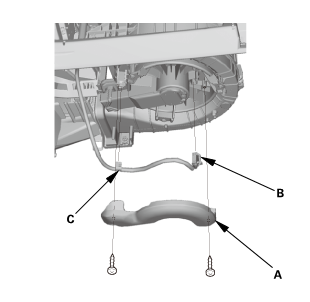

4.	Blower Motor Connector

Remove the blower motor cover (A).

Disconnect the connector (B).

Remove the harness clip (C).

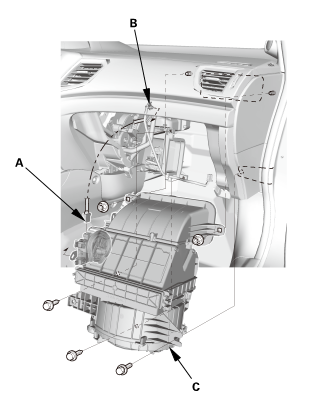

5.	Blower Unit

Disconnect the connector (A).

Remove the harness clip (B).

Remove the blower unit (C).

6.	Recirculation Control Motor

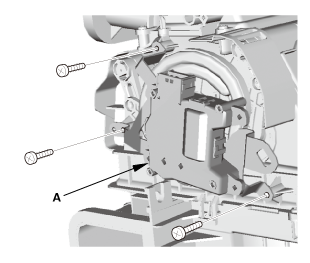

Remove the recirculation control motor (A).

1.	Recirculation Control Motor

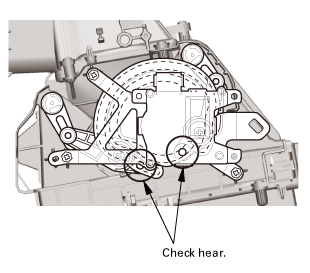

Make sure the damper lever pins in the motor lever are visible through the holes.

While holding the recirculation control motor (A), install the self-tapping screws.

After installation, make sure the motor runs smoothly.

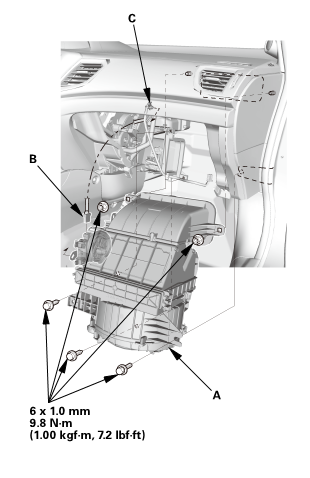

2.	Blower Unit

Install the blower unit (A).

Connect the connector (B).

Install the harness clip (C).

3.	Blower Motor Connector

Connect the connector (A).

Install the harness clip (B).

Install the blower motor cover (C).

4.	Passenger's Heater Duct

Install the passenger's heater duct (A).

5.	Cross Brace

Install the cross brace (A).

Glove Box

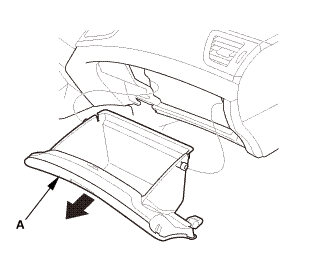

Install the glove box (A).

Install the bolts (A).
