Honda Civic Service Manual: Rear Seat Side Bolster Removal and Installation
8601A1 LEFT
8621A1 RIGHT
Removal
|
SRS components are located in this area. Review the SRS component locations
and the precautions and procedures before doing repairs or service.
|
|
|
|
1.
|

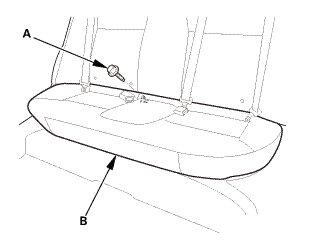

Remove the bolt (A) securing the rear seat cushion (B).
|
|
|
|
|
2.
|

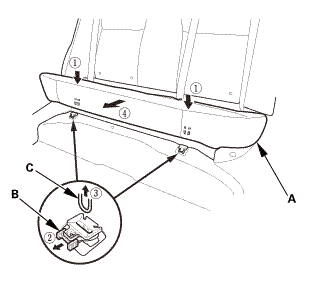

While pushing down the rear seat cushion (A), pull the seat hook
handles (B) to release the hooks (C).
|
|
3.
|
Remove the rear seat cushion.
|
|
| 2. |
Rear Seat Side Bolster |
|
|
|
1.
|

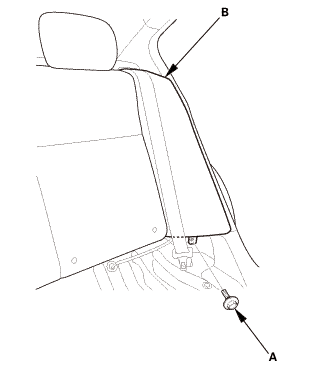

Remove the bolt (A) securing the rear seat side bolster (B).
|
|
|
|
|
2.
|

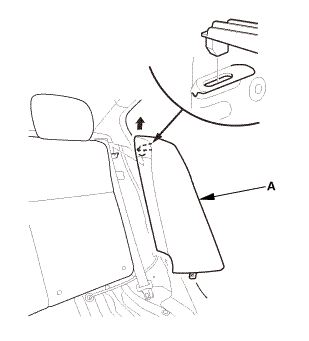

Remove the rear seat side bolster (A).
|
|
Installation
|
SRS components are located in this area. Review the SRS component locations
and the precautions and procedures before doing repairs or service.
|
| 1. |
Rear Seat Side Bolster |
|
|
|
1.
|

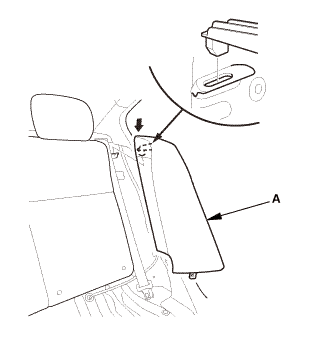

Install the rear seat side bolster (A).
|
|
|
 mmmmlnss
|
|
2.
|
Install the bolt (A) securing the rear seat side bolster (B).
|
|
|
|
|
1.
|

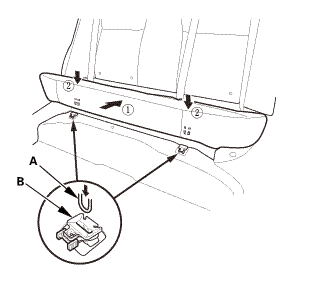

Install the hooks (A) to the rear seat cushion clips (B).
|
|
|
|
|
2.
|

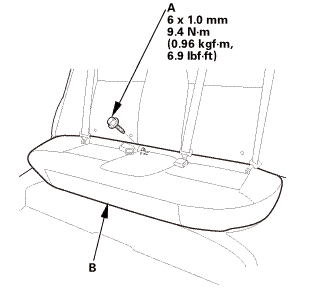

Install the bolt (A) securing the rear seat cushion (B).
|
|
8601B0 LEFT
Removal
1.
Right Rear Seat-Back - Split Fold Down
1.
Remove the right rear seat-back (A).
...
Removal
1.
Rear Seat Cushion
1.
Remove the bolt (A) securing the rear seat cushion (B).
...
