Honda Civic Service Manual: Mirror Housing Cover Removal and Installation
8201C3 LEFT
8201C4 RIGHT
Removal
|
|
|
1.
|

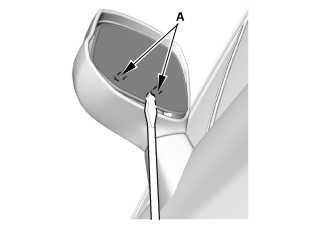

Release the hooks (A).
|
|
|
|
|
2.
|

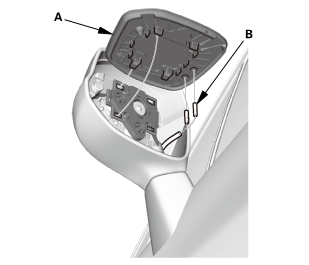

Remove the mirror holder (A).
|
|
3.
|
For some models: Disconnect the connectors (B).
|
|
|
|
|
1.
|

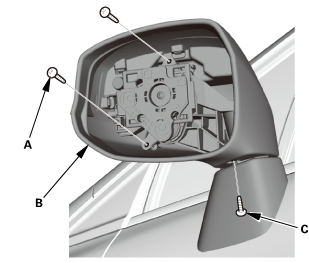

Remove the screws (A).
|
|
NOTE: Turn the mirror housing (B), then remove the lower screw
(C).
|
|
|
|
|
2.
|

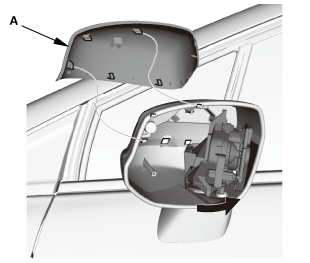

Remove the mirror housing cover (A).
|
|
Installation
|
|
|
1.
|
Install the mirror housing cover (A).
|
|
|
|
|
2.
|

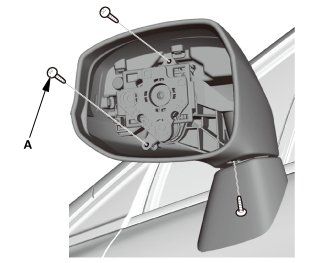

Install the screws (A).
|
|
|
|
|
1.
|

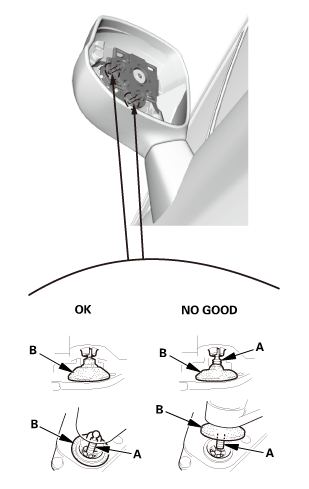

Check the actuator rods (A) and the actuator boots (B).
|
|
|
|
|
2.
|

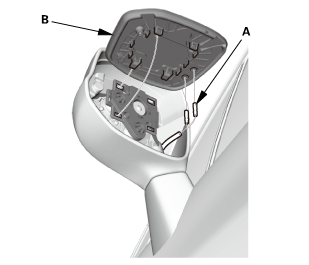

For some models: Connect the connectors (A).
|
|
3.
|
Install the mirror holder (B).
|
|
