Honda Civic Service Manual: Headlight Adjustment ('12-'13, '14: 4-door)

Honda Civic Service Manual / Body / Body Electrical / Lighting / Head Lamp / Headlight Adjustment ('12-'13, '14: 4-door)

1. Headlight - Adjustment

Headlights become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.

Before adjusting the headlights:

Park the vehicle on a level surface.

Make sure the tire pressures are correct.

The driver or someone who weighs the same should sit in the driver's seat (or use an equivalent weight).

Unload the vehicle.

1.

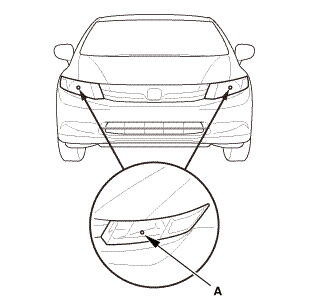

Clean the outer lens so that you can see the center (A) of the headlights.

2.

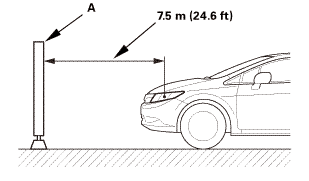

Park the vehicle in front of a wall or a screen (A).

3.

Turn the low beams ON.

4.

Determine if the headlights are aimed properly.

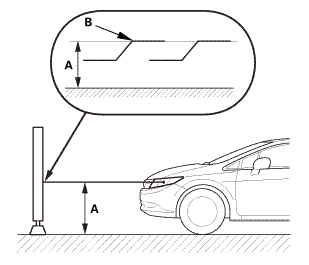

Vertical adjustment:

Measure the height of the headlights (A).

Adjust the upper edge of the cut line (B) to the headlight's height.

5.

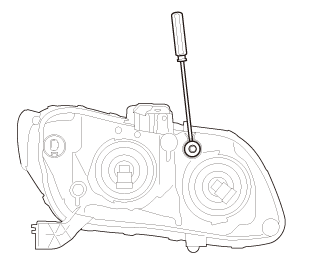

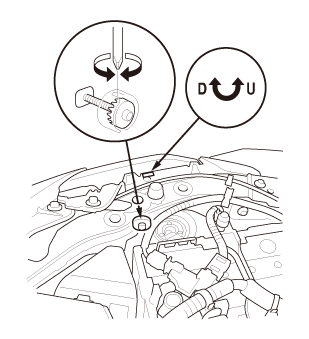

If necessary, open the hood and adjust the headlights to local requirements by turning the adjuster.
