Honda Civic Service Manual: Front Individual Map Light Removal, Installation, and Test (With Moonroof)

Honda Civic Service Manual / Body / Body Electrical / Lighting / Interior Lighting / Front Individual Map Light Removal, Installation, and Test (With Moonroof)

Removal

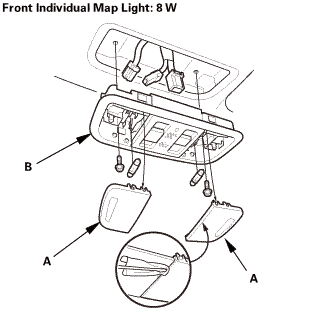

1. Front Individual Map Light (with moonroof)

1.

Turn the front individual map light switch OFF.

2.

Carefully pry off the lenses (A) with a flat-tip screwdriver.

3.

Disconnect the connectors.

4.

Remove the front individual map light (B).

Test

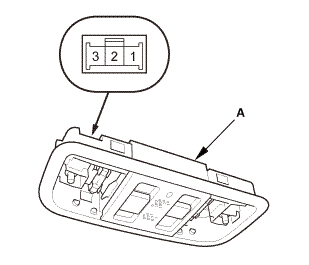

1. Front Individual Map Light - Test (with moonroof)

onanon

NOTE: When doing the front individual map light test, make sure to install the bulbs correctly.

1.

Check for continuity between the terminals in each switch position according to the table.

2.

If the continuity is not as specified, replace the bulb(s) or the front individual map light (A).

Installation

1. Front Individual Map Light (with moonroof)

rmn

1.

Connect the connectors.

2.

Install the front individual map lights (A).

3.

Carefully install the lenses (B).
