826130 LEFT
827130 RIGHT
Removal
1. | Front Door Power Window Switch Panel (4-door) |
|
|
2. | Front Door Panel - Driver's Side (4-Door) |
|
|
|
|
|
|
|
|

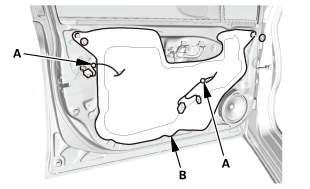

3. | Front Door Plastic Cover (4-door) |
|
|

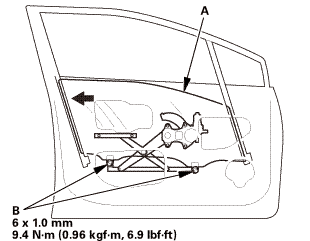

4. | Front Door Glass |
|
|

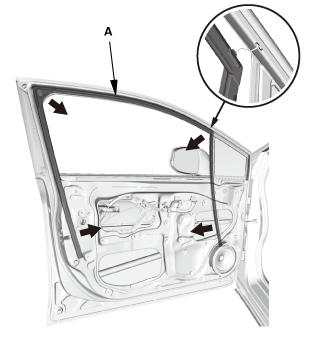

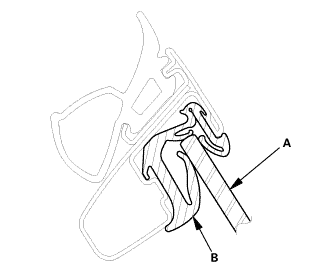

5. | Front Door Glass Run Channel |
|
|
Installation
1. | Front Door Glass Run Channel |
|
|

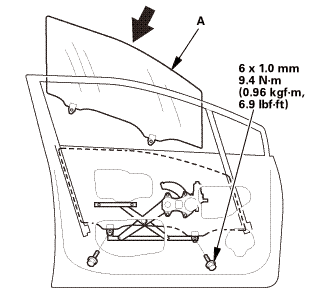

2. | Front Door Glass |
|
|
3. | Front Door Glass - Adjustment |
|
|
|
|
4. | Front Door Plastic Cover (4-door) |
|
|
5. | Front Door Panel - Driver's Side (4-Door) |
|
|
|
|
|
|
|
|
6. | Front Door Power Window Switch Panel (4-door) |
|
|
7. | Power Window Control Unit - Reset |
Resetting the power window is required when any of the following have occurred: |
|
|||
|
|||
|
|||
|
|||
|
1. |
Turn the ignition switch to ON (II). |
2. |
Move the driver's window all the way down with the driver's window DOWN switch. |
3. |
Open the driver's door. |
|
NOTE: Steps 4-7 must be done within 5 seconds of each other. |
4. |
Turn the ignition switch to LOCK (0). |
armounupnwlrwindnwdawdawnswiich
5. |
Push and hold the driver's window DOWN switch. |
6. |
Turn the ignition switch to ON (II). |
7. |
Release the driver's window DOWN switch. |
8. |
Repeat step 4-7 three more times. |
9. |
Wait at least 1 second. |
10. |
Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step 1. |
11. |
Move the driver's window all the way down with the driver's window DOWN switch. |
12. |
Pull up and hold the driver's window UP switch until the window reaches the fully closed position, then continue to hold the switch for at least 1 second. |
13. |
Confirm that the power window control unit is reset by using the driver's window AUTO UP and AUTO DOWN functions: |
|||||||||
|
