Honda Civic Service Manual: Front Door Glass Inner Weatherstrip Removal and Installation (2-door)

Honda Civic Service Manual / Body / Doors and Enclosures / Doors / Front Door Glass Inner Weatherstrip Removal and Installation (2-door)

8351A4 LEFT INNER

8361A4 RIGHT INNER

Removal

1. Front Door Panel (2-Door)

1.

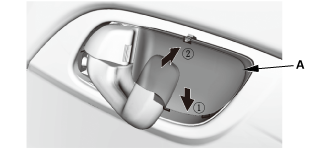

Remove the inner handle cap (A).

2.

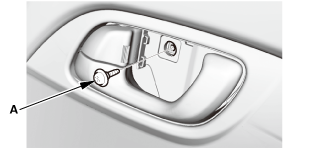

Remove the screw (A).

3.

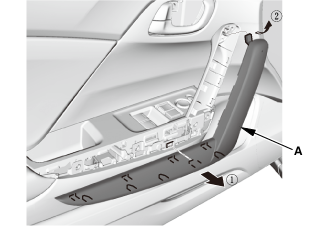

Remove the grip trim (A).

4.

Remove the screws (A).

5.

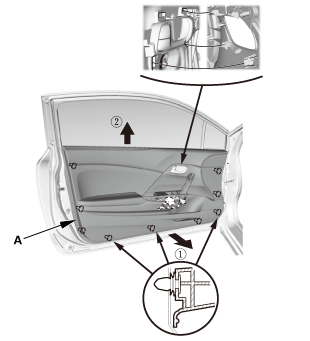

Remove the door panel (A).

2. Front Door Glass Inner Weatherstrip (2-door)

1.

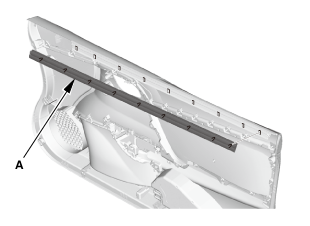

Remove the door glass inner weatherstrip (A).

Installation

1. Front Door Glass Inner Weatherstrip (2-door)

1.

Install the door glass inner weatherstrip (A).

2. Front Door Panel (2-Door)

1.

Install the door panel (A).

2.

Install the screws (A).

3.

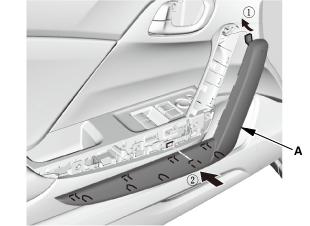

Install the grip trim (A).

4.

Install the screw (A).

5.

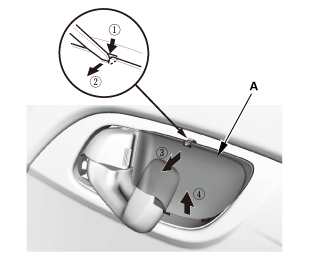

Install the inner handle cap (A).
