WARNING
- The air conditioner cooling function in the Nissan Kicks operates only when the engine is running. If the engine is not operating, the system will not provide active cooling.
- Do not leave children, adults who normally require assistance, or pets alone inside the vehicle.
They could accidentally operate vehicle controls and injure themselves or others.
On hot or sunny days, the temperature inside a closed Nissan Kicks can rise very quickly, creating a serious or potentially fatal risk for people and animals.
- Do not use recirculation mode for long periods. Continuous recirculation may make the interior air stale and can cause the windows to fog, reducing driver visibility.
NOTE:
- Odors from inside and outside the Nissan Kicks can collect in the air conditioner unit and may enter the passenger compartment through the vents.
- When parking, set the heater and air conditioner controls so air recirculation is turned off. Allowing fresh air into the passenger compartment can help reduce odor buildup inside the vehicle.

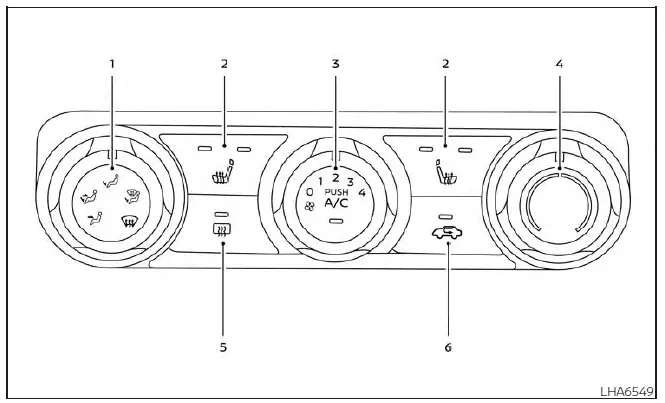

Controls
- Air flow control dial
-
Heated seat switches
-
Fan speed control dial / A/C (air conditioner)
button
- Temperature control dial
-
Rear window and outside mirror (if so
equipped) defroster switch
-
Air recirculation button
Fan speed control dial
The
fan speed control dial turns the fan on or off and adjusts the
airflow strength through the vents.
Air flow control dial
The air flow control dial allows the driver to choose which outlets distribute air inside the Nissan Kicks cabin.
- Air flows from the center and side vents.
- Air flows from the center vents, side
vents, and foot outlets.
- Air flows mainly from the foot outlets.
- Air flows from the defroster outlets and
foot outlets.
- Air flows mainly from the defroster outlets.
Temperature control dial
The temperature control dial adjusts the temperature of the air coming from the outlets. Turn the dial to the left to lower the temperature, or turn it to the right to increase warmth inside the Nissan Kicks.
Air recirculation
Press the
air recirculation button to circulate cabin air inside the
vehicle instead of drawing in outside air.
Air recirculation cannot be activated when the heater and air conditioner system is set to the
front defrosting mode.
A/C (air conditioner) button
Start the engine, turn the
fan speed control dial to the desired position,
and press the
button to turn on the air conditioner. To turn the air conditioner off,
press the
button again.
The air conditioner cooling function operates only when the engine is running.
Rear window and outside mirror (if so equipped) defroster switch
The rear window and outside mirror defroster switch, if equipped, helps clear fog, frost, or light ice from the rear glass and heated outside mirrors. For additional information, see "Rear window and outside mirror (if so equipped) defroster switch".
Heated seat switches
The heated seat switches, if equipped, are used to warm the front seats during cold weather. For additional information, see "Heated seat switches".
Heater operation
Heating
This mode directs heated air mainly to the foot outlets. Some warm air also flows from the defroster outlets and side vent outlets to help maintain comfort and visibility inside the Nissan Kicks.
1. Press the
button to the off position for normal
heating.
2. Press the
air flow control button.
For steady cabin comfort in cold weather, begin with airflow directed toward the foot outlets, then adjust the fan speed and temperature as the Nissan Kicks interior warms up.
3. Turn the
fan speed control dial to the desired position.
4. Turn the temperature control dial to the desired position between the middle and the hot range.
Ventilation
This mode directs outside air through the side and center vents. In the Nissan Kicks, ventilation is useful when you want fresh cabin airflow without strong heating or air conditioning.
1. Press the
button to the off position.
2. Press the
air flow control button.
3. Turn the
fan speed control dial to the desired
position.
4. Turn the temperature control dial to the desired position.
Defrosting or defogging
This mode sends air to the defroster outlets to help remove frost, fog, or condensation from the windshield and front glass areas.
1. Turn the air flow control dial to the
position.
2. Turn the
fan speed control dial to the desired
position.
3. Turn the temperature control dial to the desired position between the middle and the hot range.
- To remove ice or fog from the windows quickly, turn the
fan speed control dial to the highest
setting and set the temperature control to full HOT.
- When the
position is selected, the air conditioner turns on automatically
if the outside temperature is above 36ºF (2ºC). This dries the air and helps defog the windshield. The
recirculation mode automatically turns off, allowing outside air to enter the Nissan Kicks cabin for better
defogging. Recirculation mode cannot be activated in the
position.
Bi-level heating
Bi-level heating directs warmed air to the side and center vents, as well as to the front and rear floor outlets. This setting helps warm the Nissan Kicks cabin evenly while still providing airflow toward the upper body area.
1. Press the
button to the off position.
2. Turn the air flow control dial to the
position.
3. Turn the
fan speed control dial to the desired
position.
4. Turn the temperature control dial to the desired position.
Heating and defogging
This mode warms the interior while helping clear fog from the windshield. It is especially helpful in the Nissan Kicks during cold, wet, or humid weather.
1. Turn the air flow control dial to the
position.
2. Turn the
fan speed control dial to the
desired position.
3. Turn the temperature control dial to the desired position between the middle and the hot range.
- When the
position is selected, the air conditioner turns on
automatically if the outside temperature is above 36ºF (2ºC). This removes moisture from the air and helps
defog the windshield. The
mode automatically turns off, allowing
fresh outside air to enter the passenger compartment for improved defogging performance.
Operating tips
Clear snow, ice, and debris from the wiper blades and the air inlet area in front of the windshield.
This improves heater performance and helps the Nissan Kicks clear the windshield more effectively.
Air conditioner operation
Start the engine, turn the
fan speed control dial to the
desired position, and press the
button to activate the air conditioner. When the A/C is operating,
cooling and dehumidifying functions are added to normal heater operation.
The air conditioner cooling function operates only when the engine is running.
Cooling
This mode cools and dehumidifies the air entering the Nissan Kicks cabin, helping improve comfort during warm or humid weather.
1. Press the
button to the off position.
2. Turn the air flow control dial to the
position.
For stable visibility and comfort, avoid using recirculation for long periods in the Nissan Kicks during damp weather, because fresh outside air helps reduce window fogging.
3. Turn the
fan speed control dial to the desired position.
4. Press the A/C button. The indicator light will illuminate, confirming that the air conditioner is operating.
5. Turn the temperature control dial to the desired position for comfortable cooling inside the Nissan Kicks cabin.
- For quicker cooling when the outside temperature is high, press the
button to the ON position. For
normal cooling, return the
button to the off position.
Dehumidified heating
This mode warms the Nissan Kicks interior while removing moisture from the air. It is useful during cool or damp weather when the cabin needs heat but the glass also needs to stay clear.
1. Press the
button to the off position.
2. Turn the air flow control dial to the
position.
3. Turn the
fan speed control dial to the
desired position.
4. Press the A/C (air conditioner) button.
The indicator light will illuminate.
5. Turn the temperature control dial to the desired position.
Dehumidified defogging
This mode is used to defog the windows while reducing moisture inside the passenger compartment. In the Nissan Kicks, it helps improve visibility when humidity, rain, or cold weather causes condensation on the glass.
1. Turn the air flow control dial to the
position.
2. Turn the
fan speed control dial to the
desired position.
3. Press the
button. The indicator light will illuminate.
When the
,
or any position between them is selected,
the air conditioner turns on automatically. The air conditioning system will continue operating until the fan
speed control dial is turned OFF or the Nissan Kicks is shut off, even if the air flow control dial is moved to
a position other than the
position. This dehumidifies the air and helps clear fog from
the windshield.
The
mode turns off automatically, allowing
outside air to enter the passenger compartment and further improve defogging performance.
4. Turn the temperature control dial to the desired position.
Operating tips
- Keep the windows closed while the air conditioner is operating to maintain steady cooling and dehumidifying performance.
- After the Nissan Kicks has been parked in direct sunlight, drive for two or three minutes with the windows
open to release hot air from the passenger compartment.
Then close the windows. This allows the air conditioner to cool the interior more quickly.
- The air conditioning system should be operated for approximately ten minutes at least once a month. This helps circulate lubricant through the system and helps prevent damage caused by long periods of non-use.
- A visible mist may come from the vents in hot and humid conditions when the air is cooled rapidly. This is normal and does not indicate a malfunction.
- If the high temperature warning light
illuminates in red, indicating that
engine coolant temperature is above the normal range, turn the air conditioner off. For additional
information, see "If your vehicle overheats".

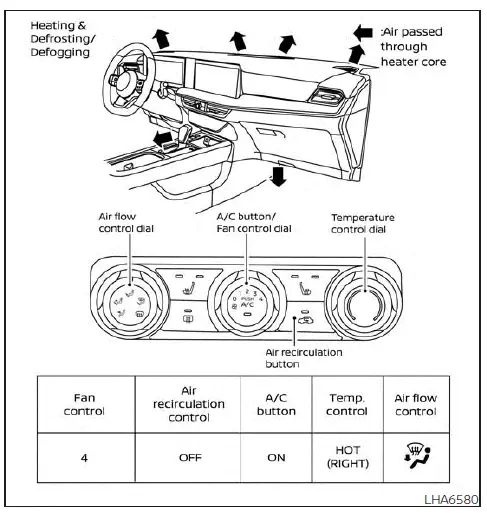

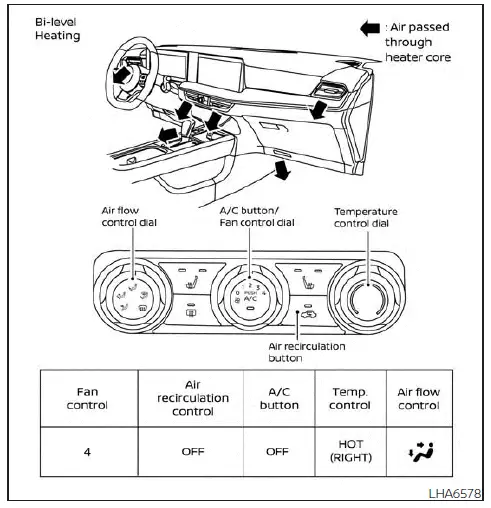

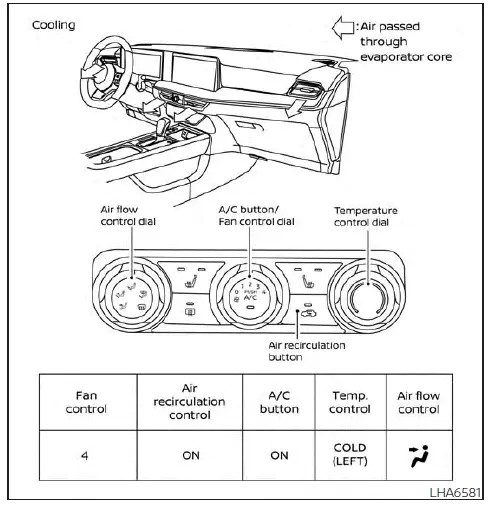

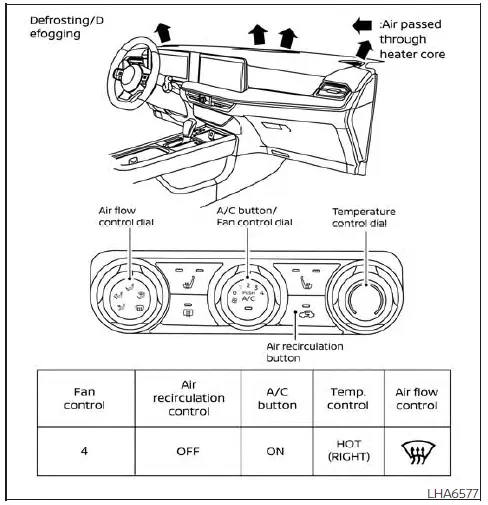

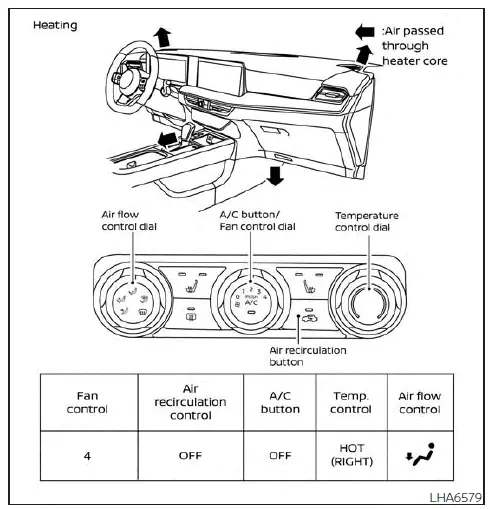

Air flow charts
The following charts show recommended button and dial positions for maximum and quick heating, cooling, or
defrosting in the Nissan Kicks. The
air recirculation button should always be in the OFF
position when using heating or defrosting modes.
For better climate control performance in the Nissan Kicks, keep the air inlet near the windshield clear and use fresh air mode when removing fog from the glass.
