Honda Civic Service Manual: Trunk Lid Lock Cylinder Removal and Installation (2-door DX models except KC models)

Honda Civic Service Manual / Body / Doors and Enclosures / Doors / Trunk Lid Lock Cylinder Removal and Installation (2-door DX models except KC models)

823110

Removal

1. Trunk Lid Lock Cylinder

1.

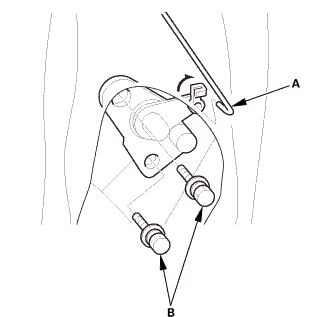

Disconnect the cylinder rod (A).

2.

Remove the bolts (B).

3.

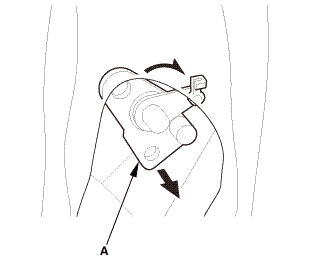

Remove the trunk lid lock cylinder (A).

Installation

1. Trunk Lid Lock Cylinder

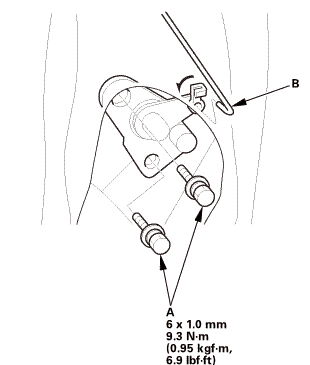

1.

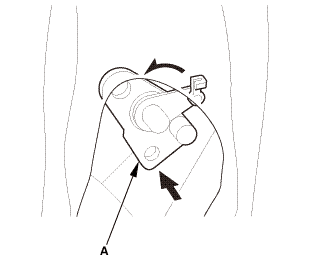

Install the trunk lid lock cylinder (A).

2.

Install the bolts (A).

3.

Connect the cylinder rod (B).
