Honda Civic Service Manual: Transmission Fluid Pressure Switch A (2nd Clutch) Removal and Installation (A/T)

Honda Civic Service Manual / Powertrain / Transmission/Transaxle / Automatic / Transmission Fluid Pressure Switch A (2nd Clutch) Removal and Installation (A/T)

2221A4 REAR

1. Vehicle Lift

1.

Raise the vehicle on a lift, and make sure it is securely supported.


2. Transmission Fluid Pressure Switch A (2nd Clutch)

1.

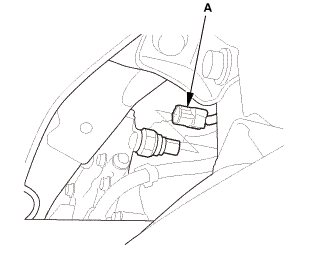

Disconnect the connector (A).


2.

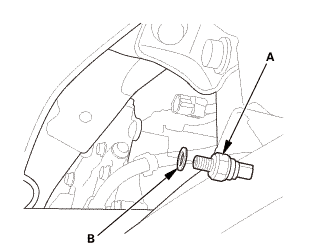

Remove transmission fluid pressure switch A (2nd clutch) with the sealing washer (B).


1. Transmission Fluid Pressure Switch A (2nd Clutch)

1.

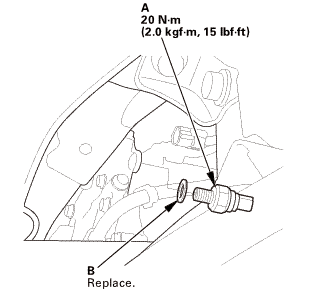

Install transmission fluid pressure switch A (2nd clutch) using a new sealing washer (B) by turning the metal part, not the plastic part.


2.

Check the connector (A) for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
