Honda Civic Service Manual: Rear Bumper Reflector Removal and Installation ('13-'14)

Honda Civic Service Manual / Body / Body Exterior / Bumpers / Rear Bumper Reflector Removal and Installation ('13-'14)

1. Rear Bumper

1.

Remove the screws (A), the bolts (B), and the clips (C, D) securing the rear bumper (E).

2.

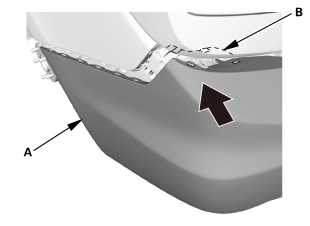

Pull out the rear bumper (A) from the side spacer (B). Repeat this step on the opposite side.

3.

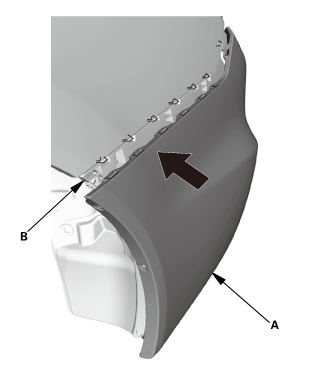

With the help of an assistant, pull out the rear bumper (A) from the side bracket (B). Repeat this step on the opposite side.

4.

With the help of an assistant, remove the rear bumper (A).
2. Rear Bumper Reflector

1.

Si model: Remove the rear bumper lower face (A).

Except Si model

Si model

2.

Remove the rear bumper reflector (A).

1. Rear Bumper Reflector

Except Si model

Si model

1.

Install the rear bumper reflector (A).

2.

Si model: Install the rear bumper lower face (A).
2. Rear Bumper

1.

With the help of an assistant, install the rear bumper (A).

2.

With the help of an assistant, install the rear bumper (A) to the side bracket (B). Repeat this step on the opposite side.

3.

Install the rear bumper (A) to the side spacer (B). Repeat this step on the opposite side.

4.

Install the screws (A), the bolts (B), and the clips (C, D) securing the rear bumper (E).
