Honda Civic Service Manual: Passenger's Dashboard Trim Panel Removal and Installation (Without Navigation)

Honda Civic Service Manual / Accessories / Navigation and Telematics / Passenger's Dashboard Trim Panel Removal and Installation (Without Navigation)

8411K3

1. Driver's Dashboard Lower Cover

1.

Remove the driver's dashboard lower cover (A).


2. Dashboard Subdisplay Visor

1.

Remove the dashboard subdisplay visor (A).


3. Center Lower Panel

1.

Remove the center lower panel (A).


NOTE: Take care not to scratch the center console panel or the related parts.


4. Audio Unit Assembly

NOTE:

Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Do not work in a dusty or dirty place.

Discharge static electricity from your body before and during the work.

Do not touch the circuit board(s) with your bare hands.

Do not work with dirty hands.

Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it, wipe it off thoroughly.).

Eject the CD before disconnecting the audio unit to prevent damaging the CD player’s load mechanism.

If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the new audio unit.


1.

Remove the bolts (A).


2.

Disconnect the connectors, then pull out the audio unit (A).


5. Audio Unit Assembly (With display audio)

NOTE:

Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Do not work in a dusty or dirty place.

Discharge static electricity from your body before and during the work.

Do not touch the circuit board(s) with your bare hands.

Do not work with dirty hands.

Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it, wipe it off thoroughly.).

Eject the CD before disconnecting the audio unit to prevent damaging the CD player’s load mechanism.

If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the new audio unit.

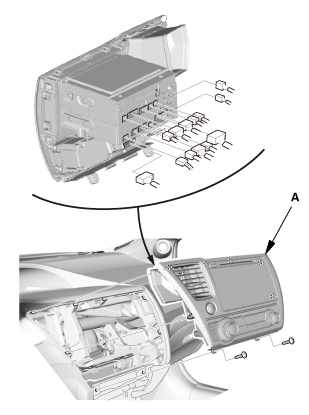

1.

Remove the bolts (A).


2.

Disconnect the connectors, then pull out the audio unit assembly (A).


6. Climate Control Panel Assembly


1.

Pull the climate control panel assembly (A).


2.

Disconnect the connectors (B), and the aspirator hose (C).


7. Glove Box - Move

1.

Lower the glove box (A).


8. Passenger's Dashboard Trim Panel

1.

Remove the passenger's dashboard trim panel (A).


1. Passenger's Dashboard Trim Panel

1.

Install the passenger's dashboard trim panel (A).


2. Glove Box - Move

1.

Install the glove box (A).

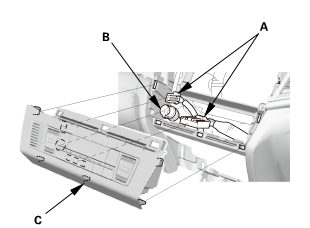

3. Climate Control Panel Assembly


1.

Connect the connectors (A), and the aspirator hose (B).


2.

Install the climate control panel assembly (C).


4. Audio Unit Assembly (With display audio)

1.

Connect the connectors, then install the audio unit assembly (A).


NOTE: Make sure all the connectors and the antenna lead are securely connected.


2.

Install the bolts (A).


5. Audio Unit Assembly

1.

Connect the connectors, then install the audio unit (A).


NOTE: Make sure all the connectors and the antenna lead are securely connected.


n.amm2.72.7

2.

Install the bolts (A).


6. Center Lower Panel

1.

Install the center lower panel (A).


NOTE: Take care not to scratch the center console panel or the related parts.


7. Dashboard Subdisplay Visor

1.

Install the dashboard subdisplay visor (A).


8. Driver's Dashboard Lower Cover

1.

Install the driver's dashboard lower cover (A).
