Honda Civic Service Manual: Outside Air Temperature Sensor Removal, Installation, and Test ('13)

Honda Civic Service Manual / Powertrain / Internal Combustion Powertrain Control / Engine Control / Engine Control Sensors / Outside Air Temperature Sensor Removal, Installation, and Test ('13)

1. Front Grille Cover

1.

Remove the front grille cover (A).


2.

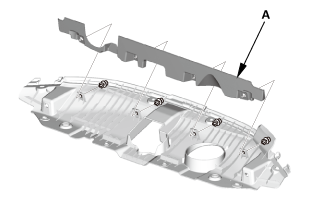

If necessary, remove the front bumper upper duct (A).


2. Front Bumper

1.

Remove the screws (A), the clips (B), and the bolts (C) securing the front bumper (D).


2.

Pull out the front bumper (A) from the side spacer (B). Repeat this step on the opposite side.


3.

With the help of an assistant, pull out both sides of the front bumper (A) from the upper beam (B).


4.

With the help of an assistant, remove the front bumper (A).


3. Front Bumper Absorber

1.

For some models: Remove the front bumper absorber (A).


4. Outside Air Temperature Sensor


1.

Disconnect the connector (A).


2.

Lift the tab (B) to release the lock.


3.

Remove the outside air temperature sensor (C).


1. Outside Air Temperature Sensor - Test

:2soas1a


1.

Dip the sensor in ice water, and measure the resistance. Then pour warm water on the sensor, and check for a change in resistance.


2.

Compare the resistance reading between terminals No. 1 and No. 2 of the outside air temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.


3.

If the resistance is not as specified, replace the outside air temperature sensor.


1. Outside Air Temperature Sensor


1.

Install the outside air temperature sensor (A).


2.

Connect the connector (B).


2. Front Bumper Absorber

1.

For some models: Install the front bumper absorber (A).


3. Front Bumper

1.

With the help of an assistant, install the front bumper (A).


2.

With the help of an assistant, install both sides of the front bumper (A) to the upper beam (B).


3.

Install the front bumper (A) to the side spacer (B). Repeat this step on the opposite side.


4.

Install the screws (A), the clips (B), and the bolts (C) securing the front bumper (D).


4. Front Grille Cover

1.

Install the front bumper upper duct (A).


2.

Install the front grille cover (A).
