Honda Civic Service Manual: Moonroof Wind Deflector Removal and Installation (4-door)

Honda Civic Service Manual / Body / "Roof - Fixed, Leisure" / Moonroof/Sunroof / Moonroof Wind Deflector Removal and Installation (4-door)

814160

Removal

1. Moonroof Deflector

1.

Open the glass fully.

2.

Remove both moonroof wind deflector links (A).

3.

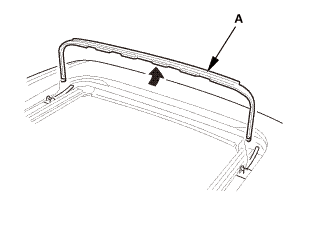

Remove the moonroof wind deflector (A).

4.

Remove both moonroof wind deflector arm bases (A).

Installation

1. Moonroof Deflector

1.

Install both moonroof wind deflector arm bases (A).

2.

Install the moonroof wind deflector (A).

3.

Install both moonroof wind deflector links (A).
