Honda Civic Service Manual: Ignition Switch Removal and Installation

Honda Civic Service Manual / Accessories / Security & Keyless Entry / Ignition Switch Removal and Installation

725120

Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.


1. Upper Column Cover

1.

Remove the upper column cover (A).


2. Lower Column Cover

1.

Remove the screws (A).


2.

Remove the lower column cover (A).

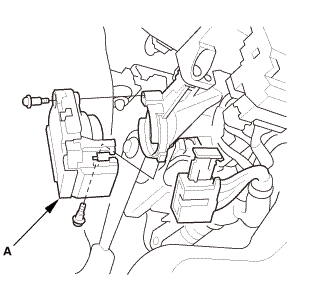

3. Ignition Switch


1.

Disconnect the connector.


2.

Remove the ignition switch (A).


Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.


1. Ignition Switch


1.

Install the ignition switch (A).


2.

Connect the connector.


2. Lower Column Cover

1.

Install the lower column cover (A).


2.

Install the screws (A).


3. Upper Column Cover

1.

Install the upper column cover (A).
