Honda Civic Service Manual: Horn Removal and Installation - Low ('12-'13, '14: 4-door)

Honda Civic Service Manual / Body / Doors and Enclosures / Doors / Horn Removal and Installation - Low ('12-'13, '14: 4-door)

7111A2

1. Front Grille Cover

1.

Remove the front grille cover (A).

2.

If necessary, remove the front bumper upper duct (A).

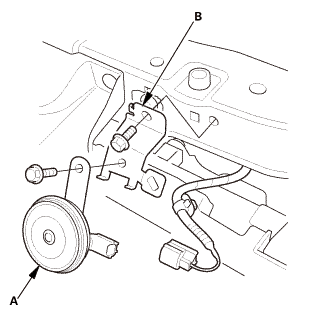

2. Horn

1.

Disconnect the connector.

2.

Remove the horn (A).

3.

Remove the bracket (B).

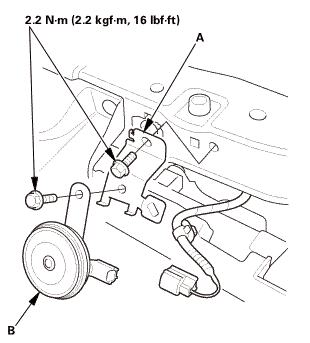

1. Horn

22

1.

Remove the bracket (A).

2.

Install the horn (B).

3.

Disconnect the connector.

2. Front Grille Cover

1.

Install the front bumper upper duct (A).

2.

Install the front grille cover (A).
