Honda Civic Service Manual: High Mount Brake Light Removal and Installation - With Trunk Lid Spoiler ('13-'14: 4-door)

Honda Civic Service Manual / Body / Body Exterior / Spoilers/Aero / High Mount Brake Light Removal and Installation - With Trunk Lid Spoiler ('13-'14: 4-door)

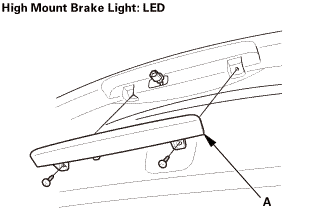

1. High Mount Brake Light

maunlled

1.

Remove the high mount brake light (A) from the trunk lid spoiler.

2.

Disconnect the connector.

1. High Mount Brake Light

maunlled

1.

Connect the connector.

2.

Install the high mount brake light (A) to the trunk lid spoiler.
