Honda Civic Service Manual: Front Grille Removal and Installation ('12, '13: 2-door, '14: 4-door)

Honda Civic Service Manual / Body / Doors and Enclosures / Doors / Front Grille Removal and Installation ('12, '13: 2-door, '14: 4-door)

1. Front Bumper

1.

Remove the screws (A), the bolts (B), and the clips (C, D) securing the front bumper (E).

2.

Pull out the front bumper (A) from the side spacer (B). Repeat this step on the opposite side.

3.

With the help of an assistant, pull out both sides of the front bumper (A) from the upper beam (B).

4.

With the help of an assistant, remove the front bumper (A).

2. Front Grille

2-door

4-door

1.

Remove the front grille (A).

3. Front Bumper Upper Duct

1.

Remove the front bumper upper duct (A).

4. Front Grille Molding - 4-Door

1.

Remove the front grille molding (A).

5. Front Grille Bracket

1.

Remove the front grille brackets (A).

2.

Remove the push nuts (B), then remove the front ‘‘H’’ emblem (C).

3.

Si: Remove the front ‘‘Si’’ emblem (D).

1. Front Grille Bracket

1.

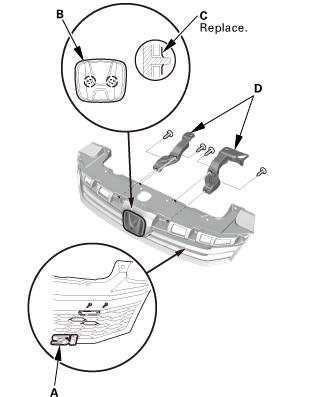

Si: Install the front ‘‘Si’’ emblem (A).

2.

Install the front ‘‘H’’ emblem (B) with the new push nuts (C).

3.

Install the front grille brackets (D).

2. Front Grille Molding - 4-Door

1.

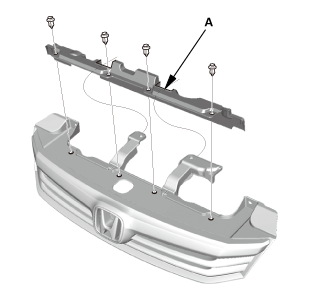

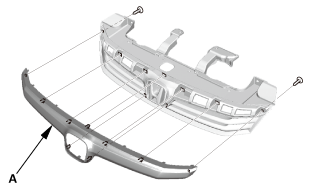

Install the front grille upper molding (A).

3. Front Bumper Upper Duct

1.

Install the front bumper upper duct (A).

4. Front Grille

2-door

4-door

1.

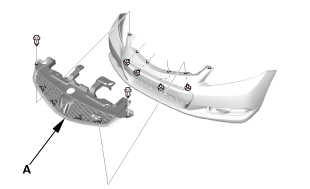

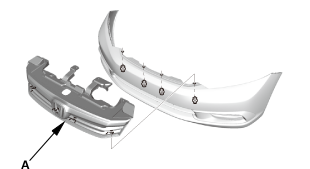

Install the front grille (A).

5. Front Bumper

1.

With the help of an assistant, install the front bumper (A).

2.

With the help of an assistant, install both sides of the front bumper (A) to the upper beam (B).

3.

Install the front bumper (A) to the side spacer (B). Repeat this step on the opposite side.

4.

Install the screws (A), the bolts (B), and the clips (C, D) securing the front bumper (E).
