Honda Civic Service Manual: Exhaust Pipe and Muffler Removal and Installation (Except K24Z7 and R18Z1 (CVT))

Honda Civic Service Manual / Powertrain / Engine / Exhaust / Exhaust Pipe and Muffler Removal and Installation (Except K24Z7 and R18Z1 (CVT))

NOTE: Use new gaskets, new self-locking nuts, and new bolts when reassembling.

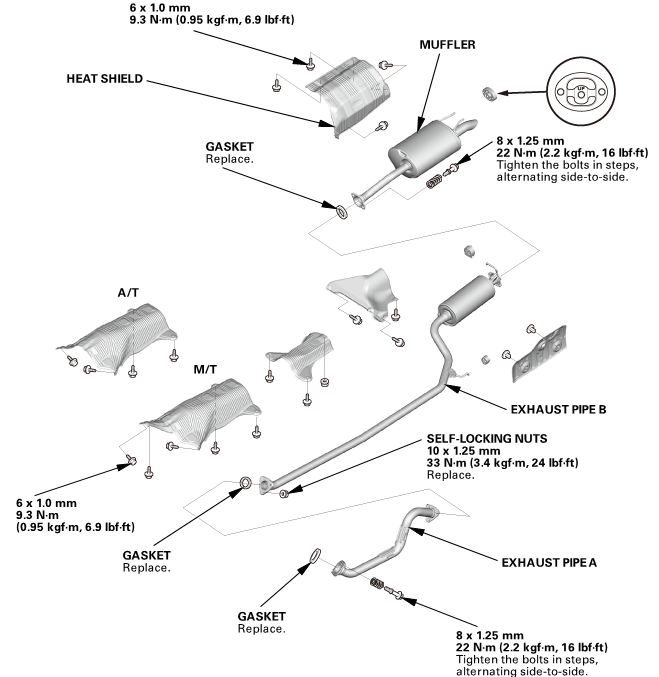

1. Exhaust Pipe and Muffler

nommn-msmsmusm/rexmmmmi25ummn)


Exhaust Pipe and Muffler Removal and Installation (K24Z7)
Replacement NOTE: Use new gaskets, new self-locking nuts, and new bolts when reassembling. 1. Exhaust Pipe and Muffler mufflerm.nutsinmm22mmreplacemmn-mall.- ...

Exhaust Pipe and Muffler Removal and Installation (K24Z7)
Replacement NOTE: Use new gaskets, new self-locking nuts, and new bolts when reassembling. 1. Exhaust Pipe and Muffler mufflerm.nutsinmm22mmreplacemmn-mall.- ...
