Honda Civic Service Manual: A/T Shift Lever Removal and Installation (A/T, CVT)

Honda Civic Service Manual / Powertrain / Transmission/Transaxle / Automatic / A/T Shift Lever Removal and Installation (A/T, CVT)

1. Center Console Panel Assembly (Except '12M M/T)

1.

Detach the clips (A).


2.

Remove the center console panel (A).

3.

For some models: Disconnect the connector(s) (B).

2. Cup Holder Panel Assembly

1.

Remove the cup holder panel assembly (A).

3. Center Console Assembly


1.

Remove the bolts (A).

2.

Disconnect the connector (B).


3.

Remove the console box mat (A).

4.

Remove the bolts (B).

5.

Disconnect the connector (A).

6.

Remove the center console (A), in the numbered sequence shown.

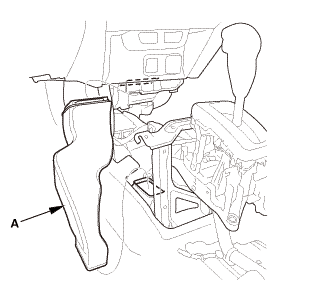

4. Rear Heater Joint Duct

1.

Remove the rear heater joint duct (A).

5. Shift Cable - Disconnection Lever Side

Type A shift lever


Type B shift lever

1.

Shift the shift lever to R.

2.

Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).

NOTE: Use only a 6.0 mm (0.236 in) pin with no burrs.

3.

Remove the nut (C) securing the shift cable end (D).

4.

Unlock the retainer lock (A).

5.

Rotate the socket holder retainer (A) counterclockwise (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Type A shift lever


Type B shift lever

6.

Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the shift cable bracket (C).


NOTE: Do not remove the shift cable by pulling the shift cable guide (D).

6. A/T Shift Lever Assembly

Type A shift lever


Type B shift lever

1.

Disconnect the connectors (A).

2.

Remove the shift lever assembly (B).

1. A/T Shift Lever Assembly

Type A shift lever


Type B shift lever

mm/2u....(2.2m.us

1.

Install the shift lever assembly (A).

2.

Connect the connectors (B).

2. Shift Cable - Adjustment

1.

Push the shift cable (A) until it stops, then release it. Pull the shift cable back one step so that the shift position is in R.

NOTE: Do not hold the shift cable guide (B) to adjust the shift cable.


2.

Turn the ignition switch to ON (II).

3.

Check that the R position indicator comes on.

Type A shift lever


Type B shift lever

4.

Align the shift cable slot (A) between the socket holder (B) and the socket holder retainer (C) with the opening (D) in the shift cable bracket (E), then slide the holder into the bracket while installing the shift cable end (F) over the mounting stud (G) by aligning its square hole (H) with the square fitting (I) at the bottom of the stud.

NOTE:

Do not install the shift cable by holding the shift cable guide (J).

When the socket holder is installed in the shift cable bracket, the retainer lock is unhinged and releases the holder retainer lock, then the holder retainer returns under spring force to secure the shift cable.

5.

Push the retainer lock (A) fully to lock the socket holder retainer (B), and make sure that the retainer lock fits into the hinged-joint (C). If the retainer lock does not fit with the edge of the hinged-joint, rotate the holder retainer counterclockwise while pushing the retainer lock until it locks.

6.

Make sure that the shift cable end (A) is properly installed on the mounting stud (B).

If the shift cable end is out of position with the mounting stud, remove the shift cable from the shift cable bracket, then reinstall the cable end over the mounting stud before reinstalling the shift cable to the shift cable bracket. Do not install the shift cable end on the mounting stud with the shift cable install on the shift cable bracket.

If the shift cable end does not ride at the bottom of the mounting stud, rotate the stud to align the square fitting with the hole.

Type A shift lever

i.z5mm1:m-m(z.115


Type B shift lever

7.

Install the shift cable end nut (A).

8.

Remove the 6.0 mm (0.236 in) pin (B) that was installed to hold the shift lever.

9.

Turn the ignition switch to ON (II).

10.

Move the shift lever to each position, and check that the A/T gear position indicator follows the transmission range switch.

11.

Shift the shift lever to P.

12.

Check that the shift lock works properly.

13.

Push the shift lock release, and check that the shift lever releases. Also check that the shift lever locks when it is shifted back to P.

3. Rear Heater Joint Duct

1.

Install the rear heater joint duct (A).

4. Center Console Assembly

1.

Install the center console (A), in the numbered sequence shown.

2.

Connect the connector (A).


3.

Install the bolts (A).

4.

Install the console box mat (B).

mms.n

5.

Connect the connector (A).

6.

Install the bolts (B).

5. Cup Holder Panel Assembly

1.

Install the cup holder panel assembly (A).

6. Center Console Panel Assembly (Except '12M M/T)


1.

For some models: Connect the connector(s) (A).

2.

Install the center console panel (B).

3.

Install the clips (A).
